1B SINGLE JAW WITH SUPER LONG STROKE THROUGH HOLE POWER CHUCK
Click on product image magnification
Online inquiryBrand: NTH
Single jaw through hole power chuck, with super long jaw
stroke.
Suitable for clamping the jig.
High rigidity construction and high clamping accuracy.
| Spec/ Model |
Plunger Stroke (mm) |
Jaw Stroke(Dia.) (mm) |
Dia. Clamping Range (mm) |
Max.D.B.Pull KN(kgf) |
Max Clamping Force KN(kgf) |

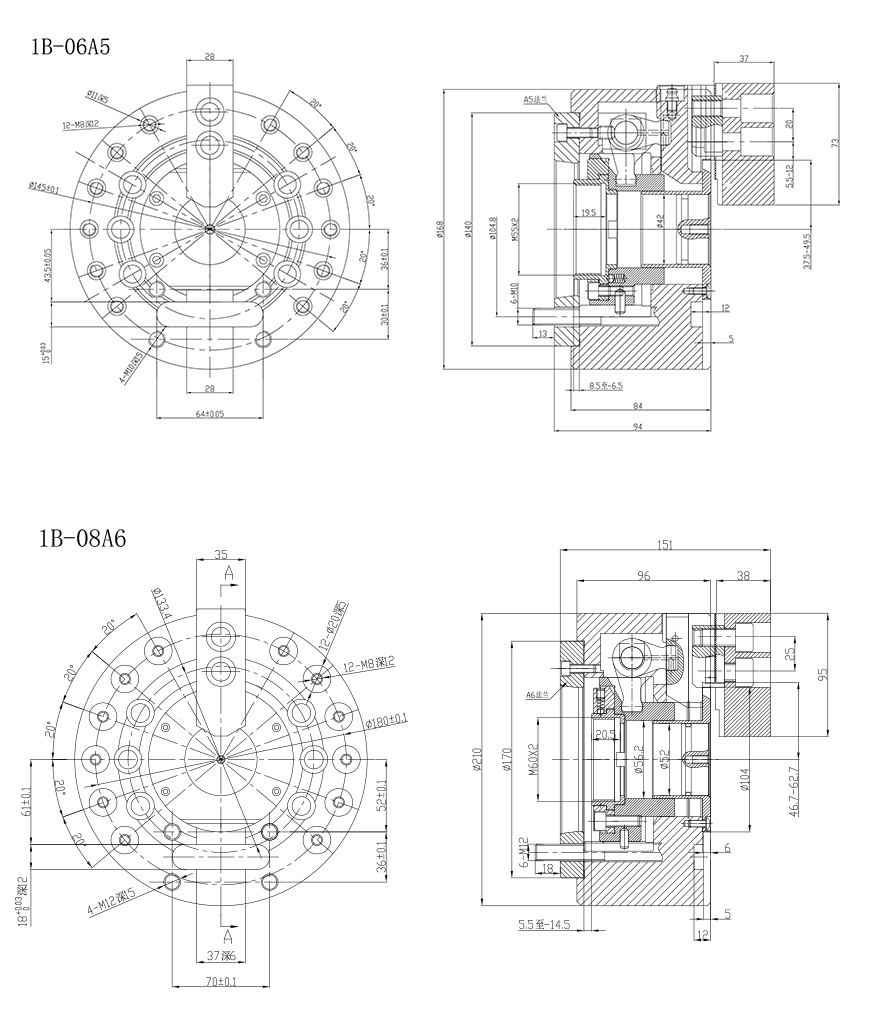

| 1B-06A5 | 15 | 12 | 10-169 | 15.7(1600) | 17.2(1760) |
| 1B-08A6 | 20 | 32 | 10-210 | 22.8(2330) | 27(2750) |
| Spec / Model | Max RPM |
Inertia kg*m2 |
Weight kg |
Matched cylinders |
Max.pressure Mpa(kgf/cm2) |
| 1B-06A5 | 3600 | 0.05 | 15 | H-1246/HK-1246 | 1.7(17) |
| 1B-08A6 | 3000 | 0.15 | 26 | H-1552/HK-1552 | 1.5(15) |
Subject to technology changes without prior information
Non-standard requirements can be made
