SC-48 INTERCHANGEABLE LIGHT DUTY LIVE CENTER

INTERCHANGEABLE LIGHT DUTY LIVE CENTER

Click on product image magnification

Download

Online inquiry

Products in detail

Type: Interchangeble live center
Duty: Light

Application CNC lathe and high speed lathe or center lathe.

Working Usage Applicable for ordinary small diameter high speed turning process.

Structure Combination of angular contact ball bearing and deep groove ball bearing.

Accessories 48 type Tips and 61 type pin punch.

TIR Less than 0.005mm

Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.

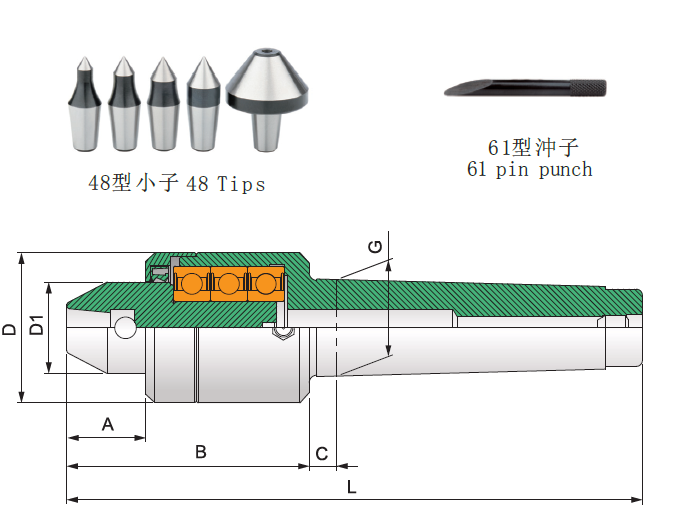

 Specification     UNIT：mm

Model/Spec

A B C D D1 G L

Max.RPM

Max. radial load

SC-48-M-2 25 78 6 52 28.5 17.780（MT2) 147 2,000rpm 300kg
SC-48-M-3 25 79 8 52 28.5 23.825（MT3) 166 2,000rpm 400kg
SC-48-M-4 25 78 9 52 28.5 31.267（MT4) 186 2,000rpm 500kg


Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.

Accessories Page
Center technical user manual
