HIGH PERFORMANCE HEAVY DUTY LONG NOSE LIVE CENTER
Click on product image magnification
Online inquiry
Type: Live centers series
Duty: Heavy
Application CNC heavy duty lathe, heavy duty high speed lathe
Working Usage Applicable for the long workpiece and heavy duty turning process
Structure Combination of double row precise ball bearing and thrust bearing and needle bearing, with the design of three supporting points.
Accessories Y type spanner
TIR Less than 0.002mm
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.

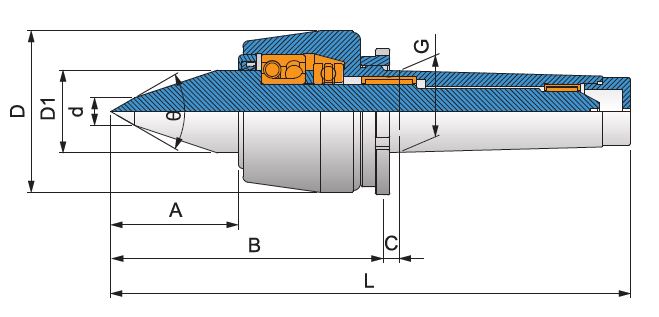

Specification UNIT：mm
|
Model/Spec |
A | B | C | D | D1 | d | G | L | Ø |
Max. RPM |
Max. radial load |
Max. axial thrust force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TSC-263-3A | 75 | 147 | 8 | 58 | 34.8 | 13 | 23.825（MT3) | 234 | 60゜ | 6,000rpm | 1,450kg | 1,800kg |
| TSC-263-4A | 75 | 147 | 8 | 65 | 34.8 | 13 | 31.267（MT4) | 255 | 60゜ | 6,000rpm | 2,250kg | 2,700kg |
| TSC-263-5A | 75 | 153 | 9 | 75 | 44.8 | 15 | 44.399（MT5) | 288 | 60゜ | 6,000rpm | 3，620kg | 3,000kg |
Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
