RETRACTABLE SPRING LIVE CENTER
Click on product image magnification
Online inquiryType: Retractable series,Interchangeable
Application: CNC lathe or grinder and other lathe
Working Usage: The center which retractable feature can response the situation of workpiece length thermal expansion during turning process . So it can avoid deformation.
Color scale: When the color line reach the fixed end plan of the center, Red line: 80Kgf/ Yellow line: 50Kgf/ Green line: 0Kgf
TIR < 0.01mm
Notes:
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.

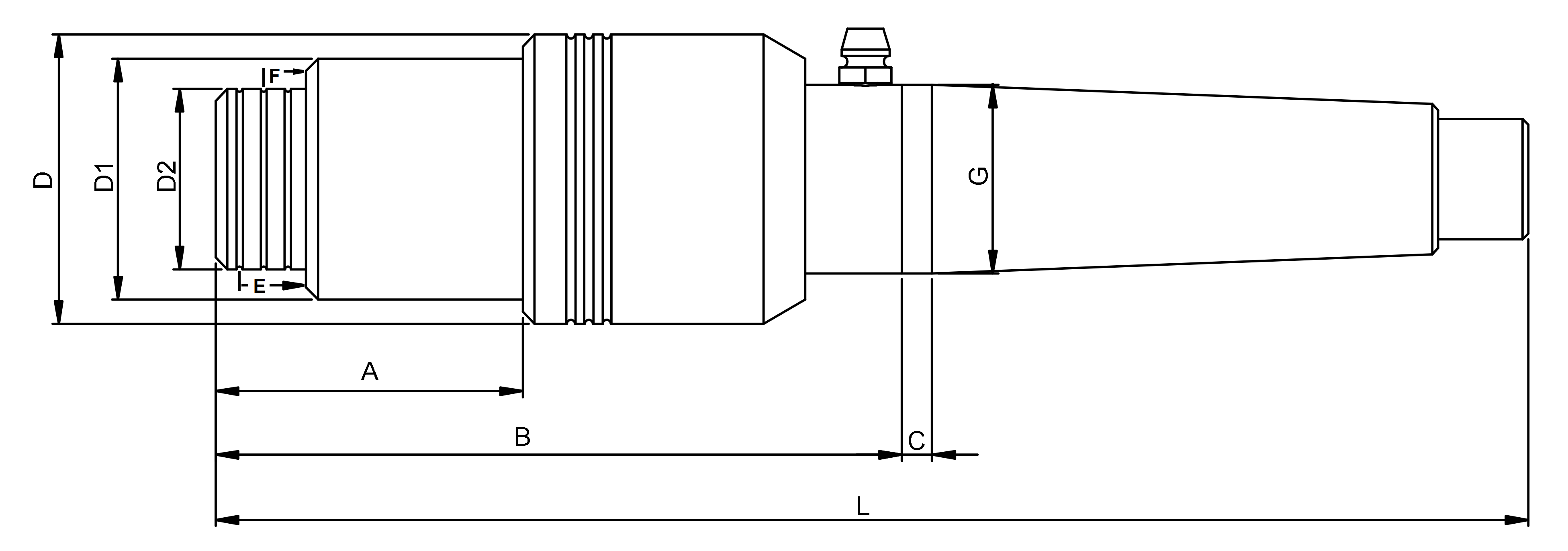

Specification UNIT：mm
|
Model/Spec |
A | B | C | D | D1 | D2 |
E
Max push in |
F
Max push in |
G | L |
|---|---|---|---|---|---|---|---|---|---|---|
| TSC36465-4 | 51 | 110 | 9 | 48 | 40 | 30 | 10 | 5 | 31.267(MT4) | 218 |
| TSC36465-5 | 51 | 131 | 9 | 63 | 40 | 30 | 10 | 5 | 44.399(MT5) | 266 |
Customized order can be accepted.
Subject to technical changes.
