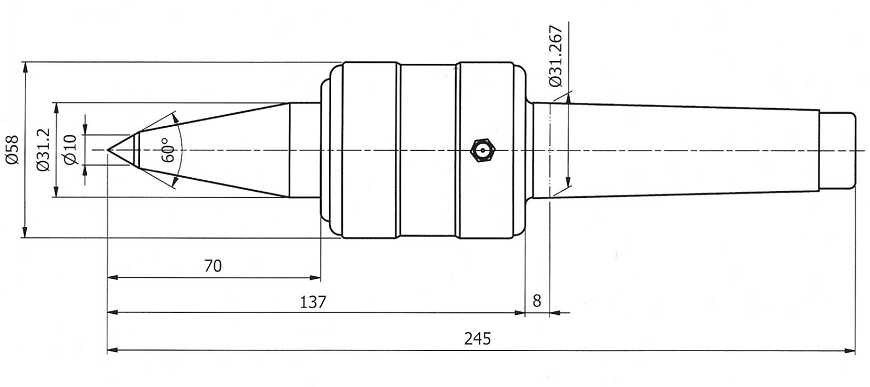

TSC-9063 MEDIUM DUTY LONG-THIN AND LIGHT LIVE CENTER WITH TUNGSTEN CENTER

MEDIUM DUTY LONG AND THIN LIGHT LIVE CENTER WITH TUNGSTEN CENTER

Click on product image magnification

Download

Online inquiry

Products in detail

TSC-9063 SERIES
MEDIUM DUTY LONG AND THIN LIGHT LIVE CENTER
Application: CNC lathe, high speed lathe and other lathe.
Working Usage: Applicable for the length less than 400mm light turning process, and slender workpiece turning process.
TIR: Less than 0.005mm
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.

Model/Spec

MT Max. RPM Max. radial load Max. axial thrust force
TSC-9063-TS10-4 31.267（MT4) 3500 1000 1500

Accessories Page
Center technical user manual


Subject to technology changes without prior information
Non-standard requirements can be made
