SC-65 INTERCHANGEABLE HEAVY DUTY LIVE CENTER

SC-65 INTERCHANGEABLE HEAVY DUTY LIVE CENTER

Click on product image magnification

Download

Online inquiry

Products in detail

Type: Interchangeble live center
Duty: Heavy

Application CNC lathe and high speed lathe or other lathe.

Working Usage Applicable for the length less than 400mm ordinary strong turning process.

Structure Combination of double row ball precise bearing and thrust bearing and needle bearing.

Accessories: For SC-65-H-4/5, 65 type Tips and 65 type punch.

TIR Less than 0.005mm

Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.


There is S model of light duty type, same spec, which can improve the issue of deformation of processing slender workpiece

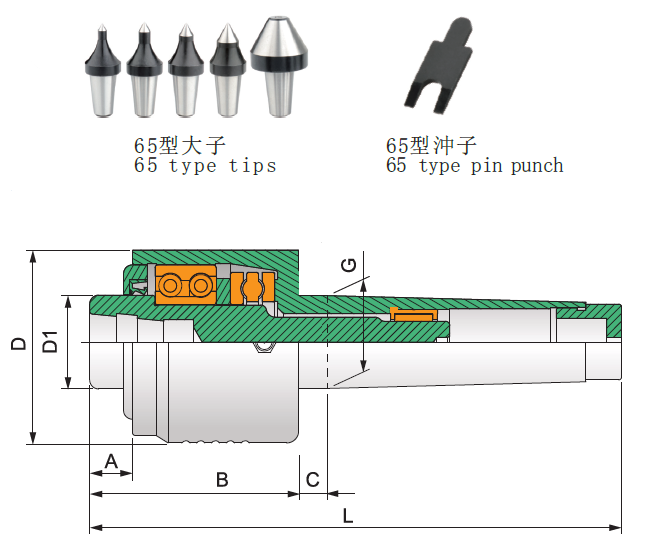

Specification   UNIT：mm

Model/Spec

A B C D D1 G L

Max.RPM

Max. radial load

Max. axial thrust force

SC-65-H-4 14 70 9 62 31.2 31.267（MT4) 178 4,000rpm 1,430kg 2,700kg
SC-65-H-5 14 70 9 62 31.2

44.399

（MT5)

205 4,000rpm 1,430kg 2,700kg


Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.


Accessories Page
Center technical user manual
