ZERO POINT SYSTEMS
Click on product image magnification
Online inquiryZERO POINT SYSTEMS
Using this latest ZERO POINT SYSTEMS, it can optimize the clamping and changing process and shorten the exchanging time, to save the cost and improve the efficiency.
Features
Increase the working time of the machine
Shorten the time of exchanging fixture
High precision of repeating position
The products suit for almost machines
Having both good positioning and clamping

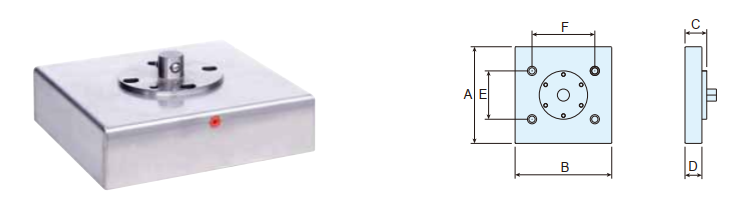

| Model | A | B | C | D | E | F |
Gripping Power KN |
Tension Power KN |
N.W. KG |
|---|---|---|---|---|---|---|---|---|---|
| ZPS-125-200-RH | 200 | 200 | 50 | 40 | 100 | 100 | 20 | 55 | 13 |
| ZPS-125-200-RL | 200 | 200 | 50 | 40 | 100 | 100 | 17 | 55 | 13 |

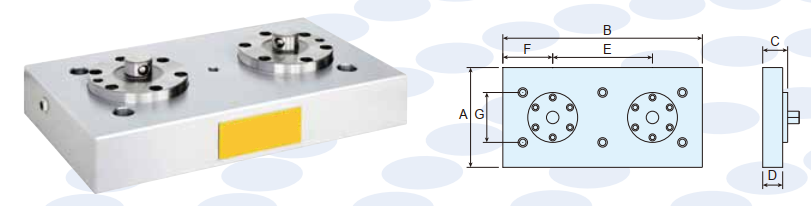

| Model | A | B | C | D | E | F | G |
Gripping Power KN |
Tension Power KN |
N.W. KG |
|---|---|---|---|---|---|---|---|---|---|---|
| ZPS-225-300-RH | 170 | 300 | 50 | 40 | 150 | 75 | 100 | 20 | 55 | 17 |
| ZPS-225-400-RH | 200 | 400 | 50 | 40 | 250 | 75 | 100 | 20 | 55 | 20 |
| ZPS-225-300-RL | 170 | 300 | 50 | 40 | 150 | 75 | 100 | 17 | 55 | 17 |
| ZPS-225-400-RL | 200 | 400 | 50 | 40 | 250 | 75 | 100 | 17 | 55 | 20 |

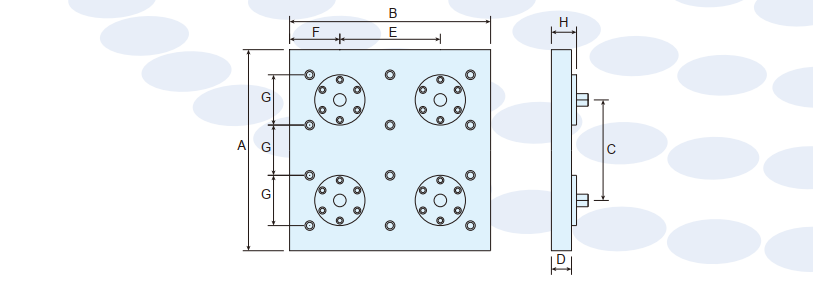

| Model | A | B | C | D | E | F | G | H |
Gripping Power KN |
Tension Power KN |
N.W. KG |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZPS-425-300-RH | 300 | 300 | 150 | 40 | 150 | 75 | 100 | 50 | 20 | 55 | 29 |
| ZPS-425-400-RH | 400 | 400 | 200 | 40 | 250 | 75 | 100 | 50 | 20 | 55 | 50 |
| ZPS-425-300-RL | 300 | 300 | 150 | 40 | 150 | 75 | 100 | 50 | 17 | 55 | 29 |
| ZPS-425-400-RL | 400 | 400 | 200 | 40 | 250 | 75 | 100 | 50 | 17 | 55 | 50 |
Remark:
RH：Hydraulic model
RL：Pneumatic model

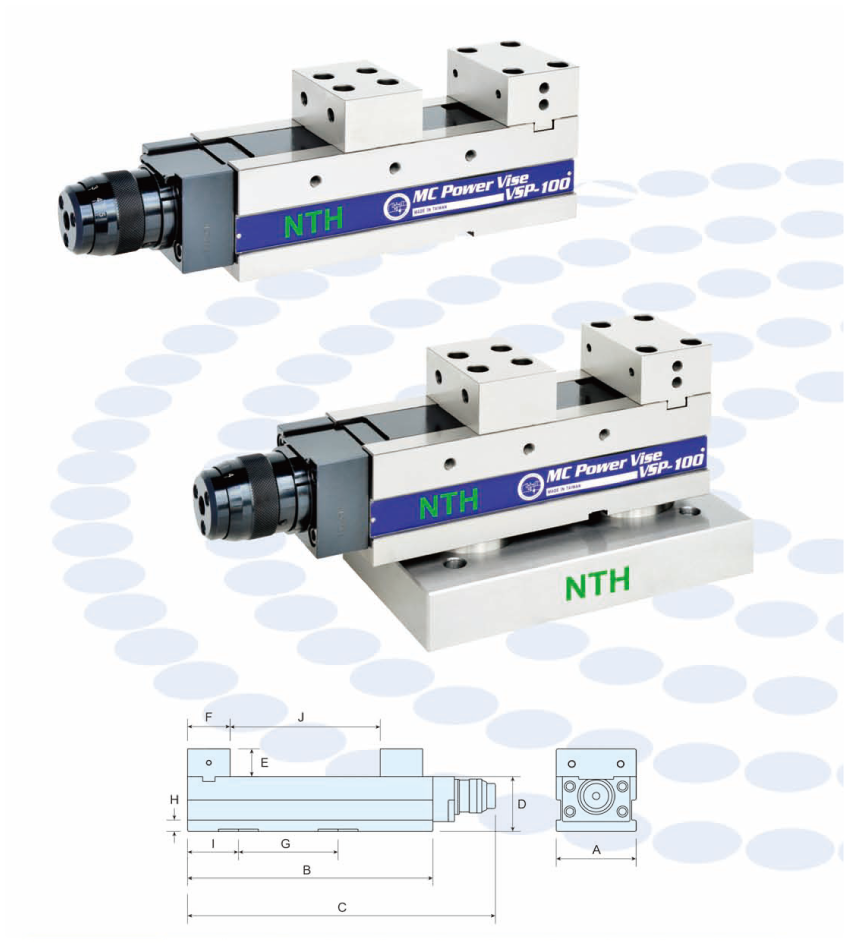

| Model | A | B | C | D | E | F | G | H | I | J |
N.W. KG |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VSP-100-ZPS |
100 |
310 | 435 | 95 | 45 | 70 | 150 | 23 | 100 | 140 | 26 |
| VSP-130-ZPS | 130 | 410 | 535 | 100 | 50 | 80 | 250 | 23 | 110 | 230 | 45 |
| Model | A | B | C | D | E | F | G | H | J |
N.W. KG |
|---|---|---|---|---|---|---|---|---|---|---|
| VSC-100-5XC-ZPS |
100 |
310 | 340 | 95 | 90 | 85 | 150 | 23 | 30-100 | 37 |
| VSP-130-ZPS | 130 | 410 | 510 | 100 | 100 | 90 | 250 | 23 | 30-220 |
45 |

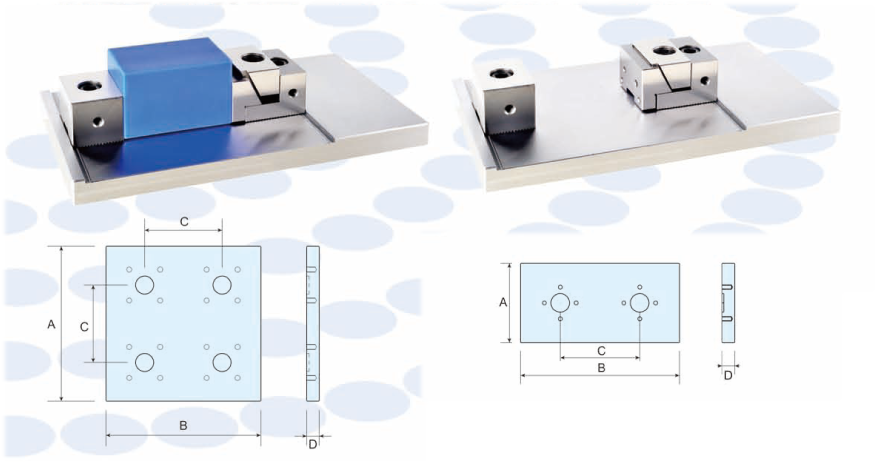

| Model | A | B | C | D |
N.W. KG |
|---|---|---|---|---|---|
| ZPS-425-300-P | 300 | 300 | 150 | 30 | 23 |
| ZPS-425-400-P | 400 | 400 | 250 | 35 |
46 |
|
ZPS-225-300-P |
170 | 300 | 150 | 30 | 13 |
|
ZPS-225-300-P |
200 | 400 | 250 | 30 | 20 |
