Super precision hydraulic vice
Click on product image magnification
Online inquiry
|

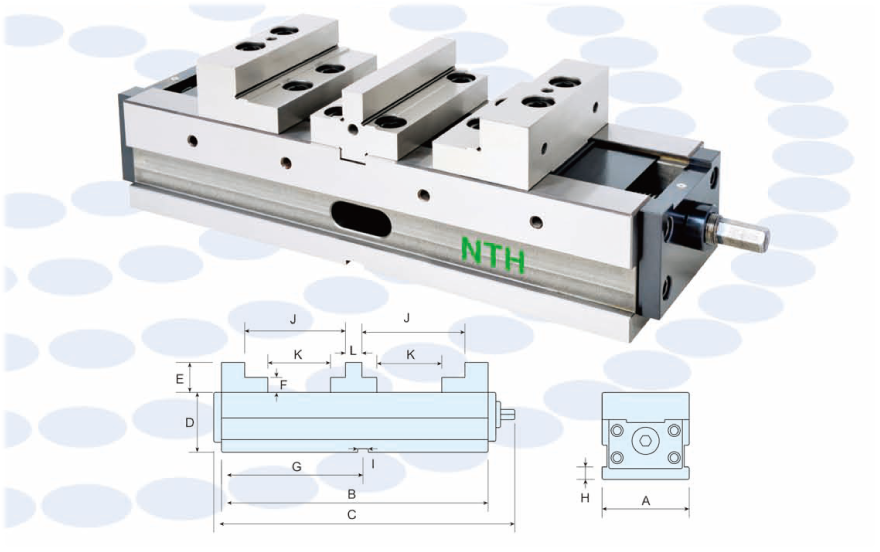

MODEL |
A | B | C | D | E | F | G | H | I | J |
N.W. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VSC-100A | 100 | 310 | 340 | 95 | 45 | 70 | 155 | 23 | 18 | 35 | 35kg |
| VSC-130A | 130 | 410 | 510 | 100 | 50 | 75 | 205 | 23 | 18 | 90 | 43kg |
| VSC-160A | 160 | 490 | 590 | 110 | 55 | 85 | 245 | 23 | 18 | 115 | 65kg |
| VSC-200A | 200 | 565 | 665 | 120 | 60 | 95 | 282 | 23 | 18 | 135 | 105kg |
|
MODEL |
A | B | C | D | E | F | G | H | I | J |
K |
L |
N.W. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VSC-100AA | 100 | 310 | 340 | 95 | 45 | 22 | 155 | 23 | 18 | 90 | 35 | 20 | 35kg |
| VSC-130AA | 130 | 410 | 510 | 100 | 50 | 25 | 205 | 23 | 18 | 150 | 90 | 20 | 43kg |
| VSC-160AA | 160 | 490 | 590 | 110 | 55 | 27 | 245 | 23 | 18 | 180 | 115 | 20 | 65kg |
| VSC-200AA | 200 | 565 | 665 | 120 | 60 | 30 | 282 | 23 | 18 | 210 | 135 | 20 | 105kg |
