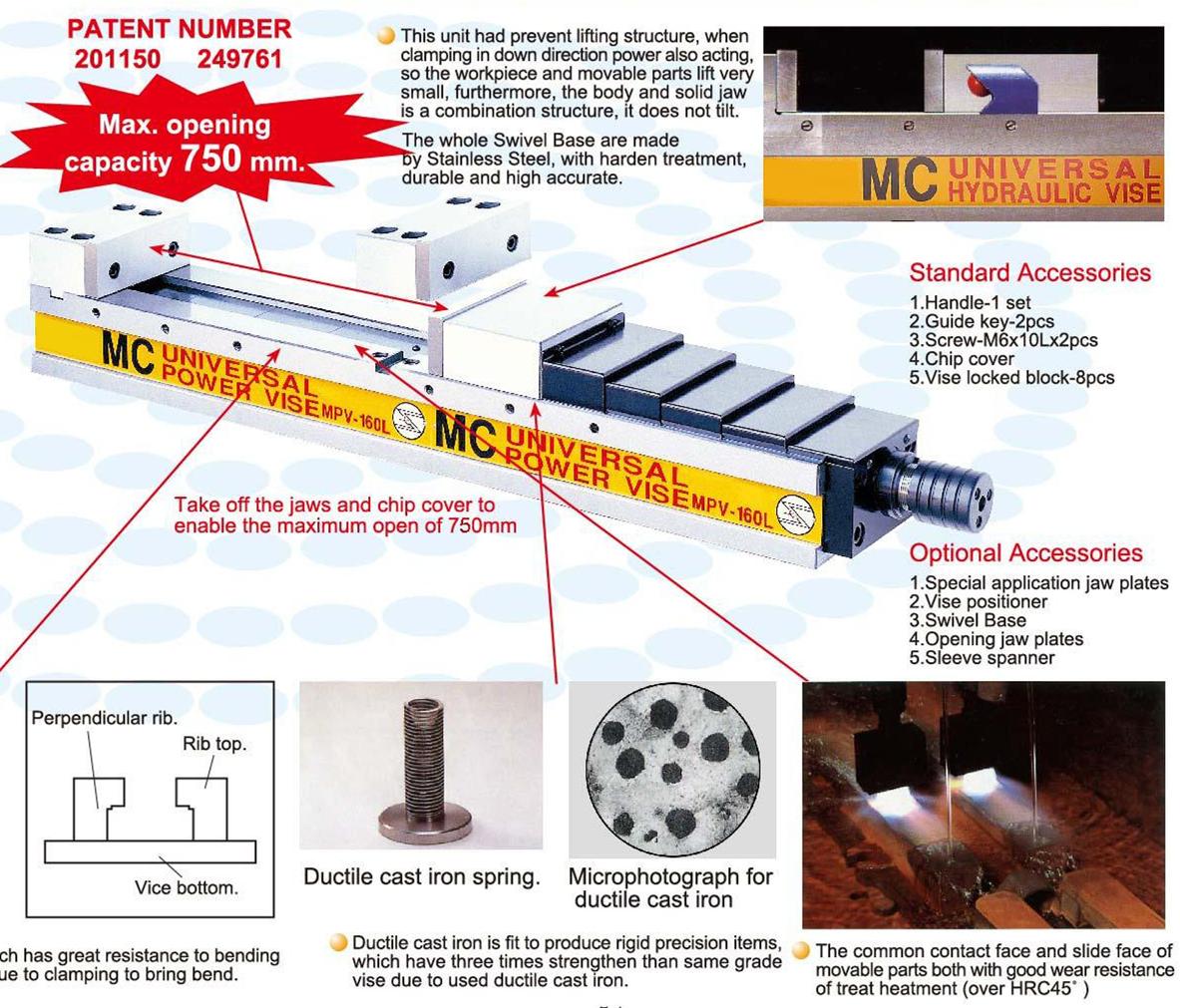

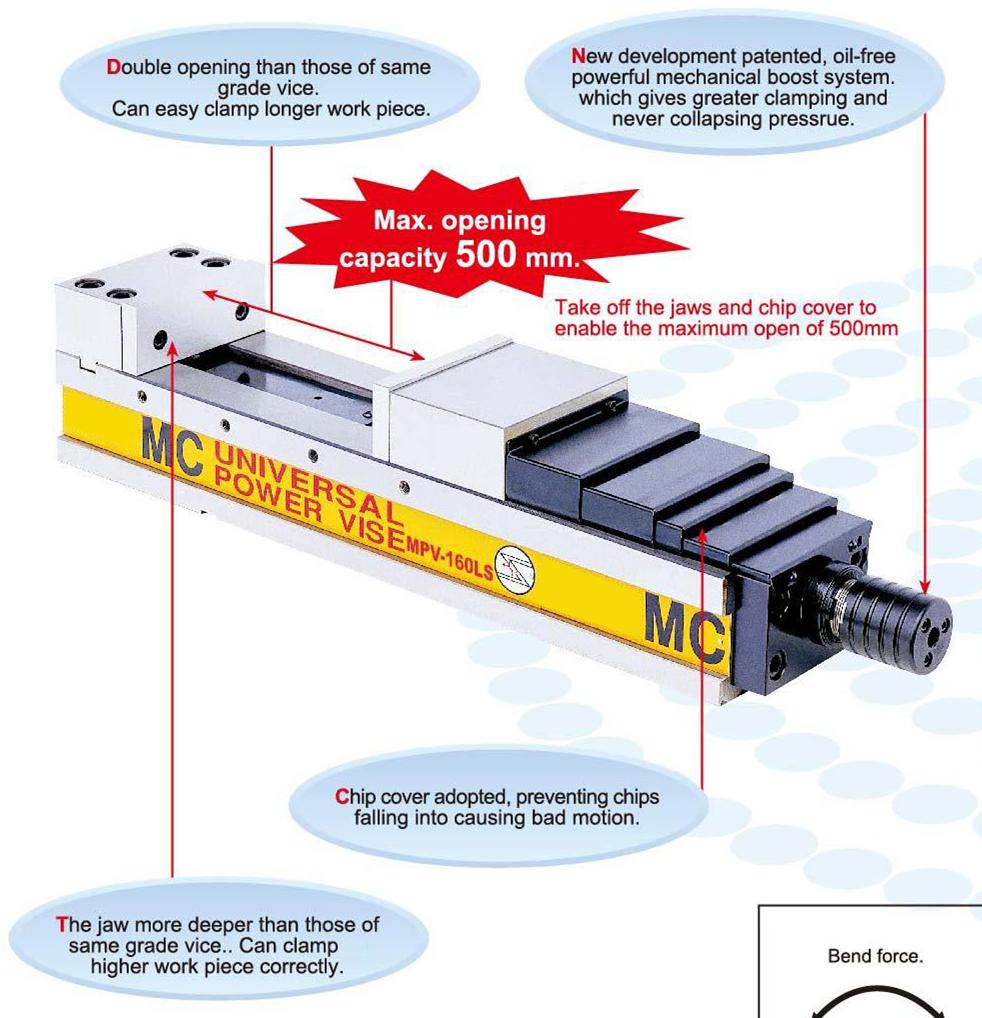

SUPER LONG UNIVERSAL POWERFUL TYPE PRECISION VICE
Click on product image magnification
Online inquiry

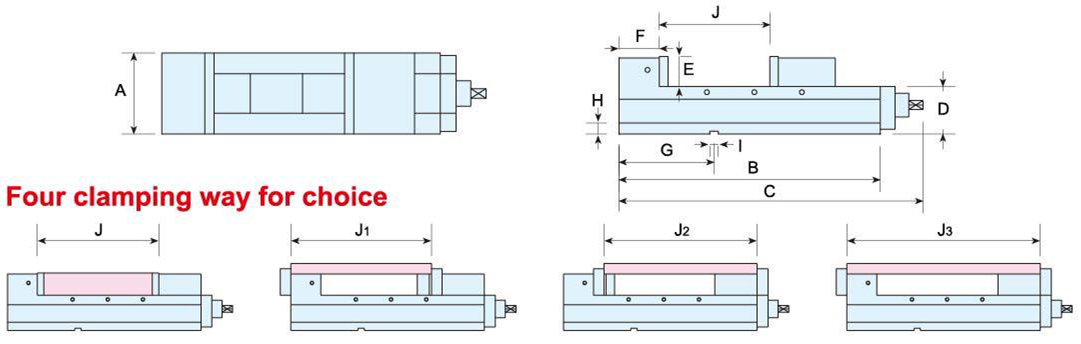

| MODEL | A | B | C | D | E | F | G | H | I | J | J1 | J2 | J3 | N.W. | .G.W | Clamping force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPV-160LS | 160 | 725 | 860 | 105 | 60 | 103 | 100 | 23 | 18 | 500 | 580 | 620 | 720 | 80kg | 91kg | 4400kgf |
| MPV-200LS | 200 | 835 | 970 | 110 | 60 | 108 | 220 | 23 | 18 | 600 | 690 | 730 | 830 | 100kg | 115kg | 5500kgf |
MODEL
A
B
C
D
E
F
G
H
I
J
J1
J2
J3
N.W.
G.W.
Clamping force
MPV-160L
160
1000
1130
105
60
103
100
23
18
750
850
890
1000
90kg
108kg
4400kgf
MPV-200L
200
1100
1230
110
60
108
220
23
18
840
940
990
1100
130kg
145kg
5500kgf
