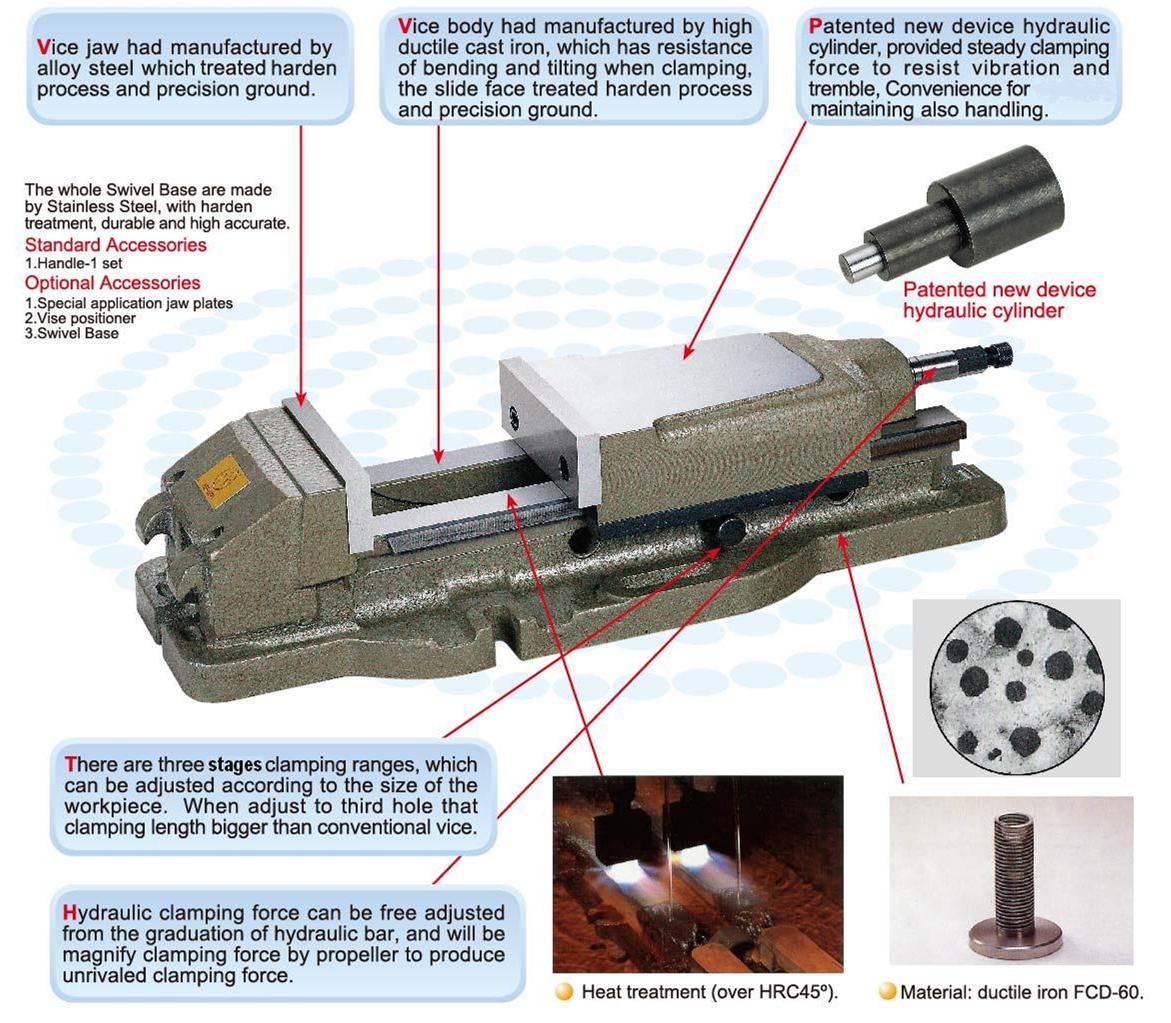

HYDRAULIC PRESSURE PRECISION VICE
Click on product image magnification
Online inquiry

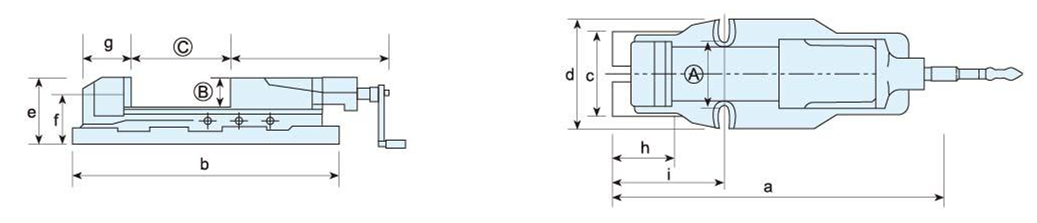

| MODEL | A | B | C | a | b | c | d | e | f | g | h | i | Clamping force | Body weight | Base weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HS-100 | 100 | 36 | 170 | 525 | 430 | 130 | 160 | 94 | 60 | 78 | 100 | 155 | 2500kgf | 16kg | 6kg |
| HS-125 | 125 | 46 | 220 | 670 | 540 | 165 | 185 | 118 | 72 | 97 | 117 | 185 | 3500kgf | 32kg | 10kg |
| HS-150 | 150 | 51 | 300 | 800 | 620 | 200 | 240 | 133 | 82 | 116 | 125 | 247 | 4400kgf | 54kg | 16kg |
| HS-200 | 200 | 62 | 300 | 900 | 700 | 240 | 280 | 162 | 100 | 160 | 165 | 266 | 5500kgf | 95kg | 30kg |
