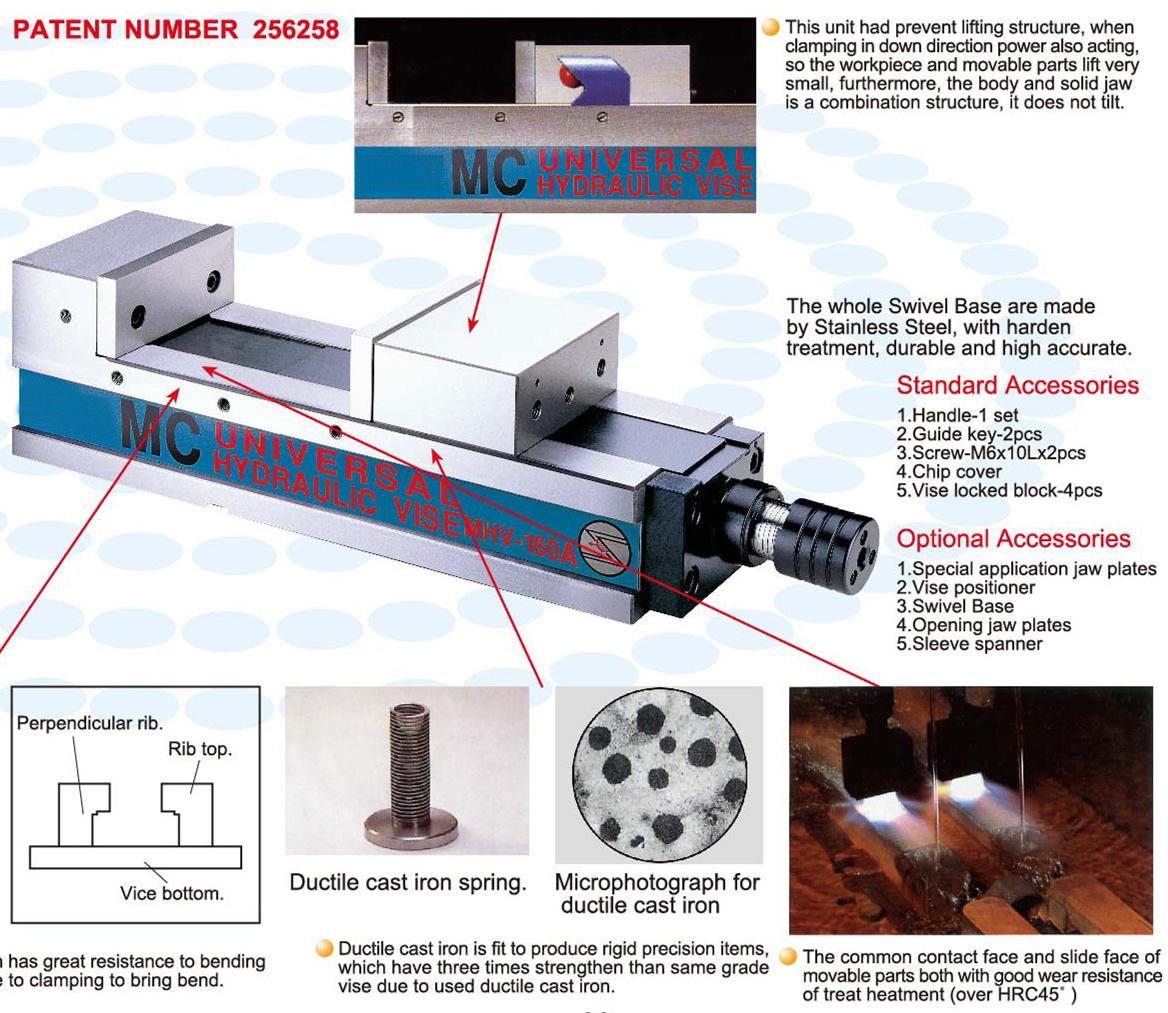

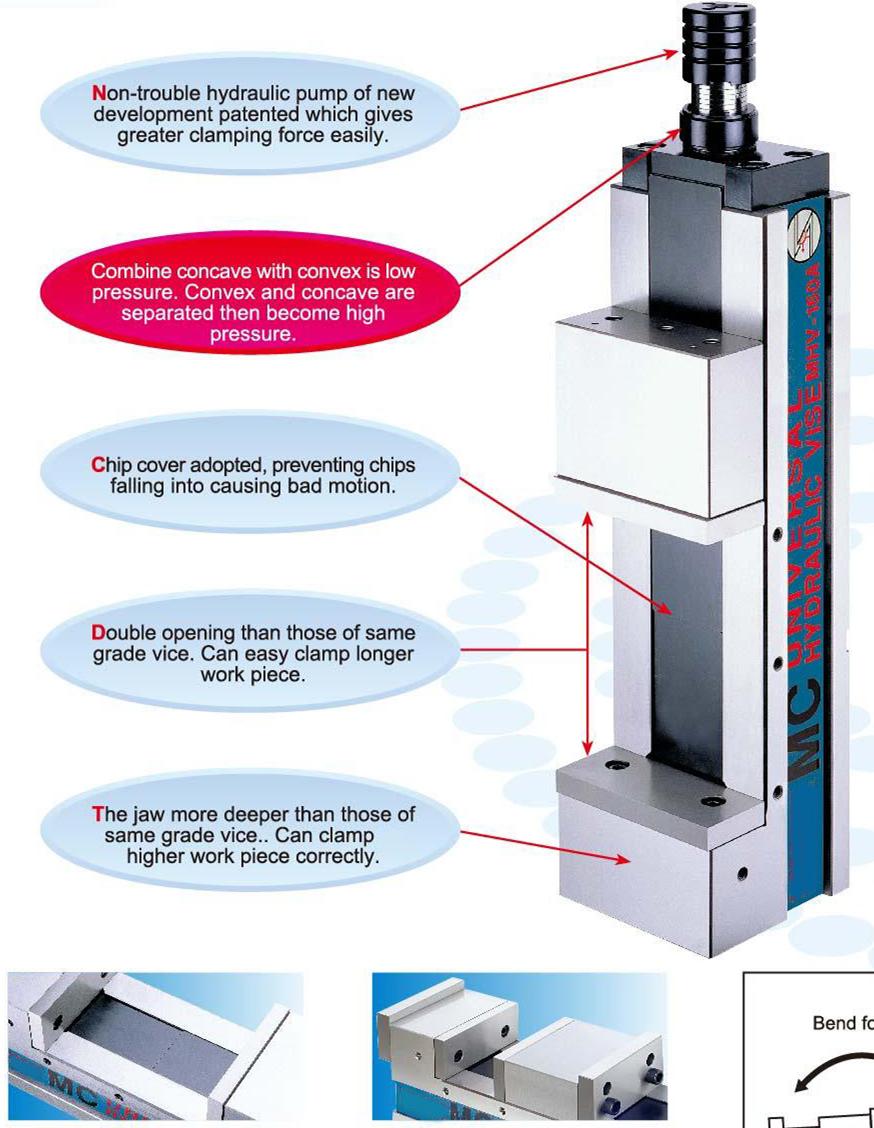

SUPER PRECISION HYDRAULIC VICE
Click on product image magnification
Online inquiry

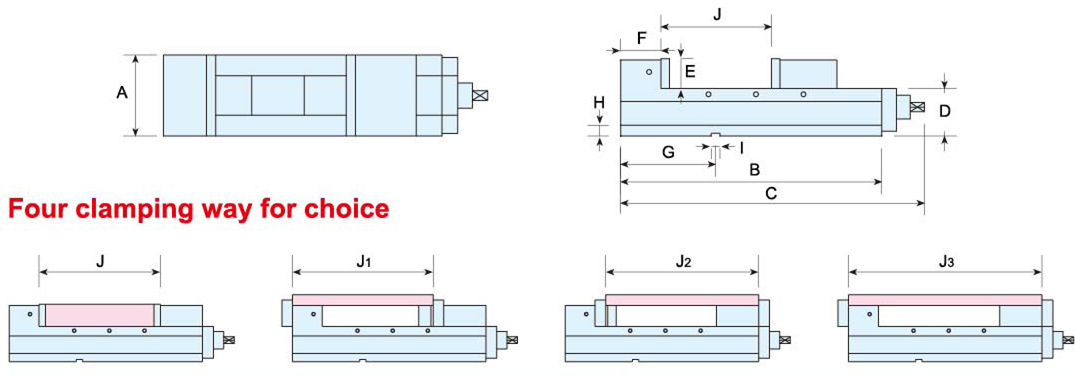

| MODEL | A | B | C | D | E | F | G | H | I | J | J1 | J2 | J3 | N.W | G.W | Clamping force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MHV-100A | 100 | 400 | 540 | 85 | 45 | 80 | 110 | 23 | 18 | 150 | 230 | 260 | 340 | 32kg | 35kg | 4000kgf |
| MHV-130A | 130 | 450 | 590 | 95 | 50 | 85 | 135 | 23 | 18 | 200 | 285 | 320 | 405 | 45kg | 48kg | 4500kgf |
| MHV-160A | 160 | 550 | 690 | 100 | 60 | 103 | 200 | 23 | 18 | 265 | 380 | 400 | 500 | 63kg | 66kg | 5000kgf |
| MHV-200A | 200 | 600 | 740 | 110 | 65 | 108 | 220 | 23 | 18 | 300 | 438 | 470 | 578 | 92kg | 104kg | 5500kgf |
