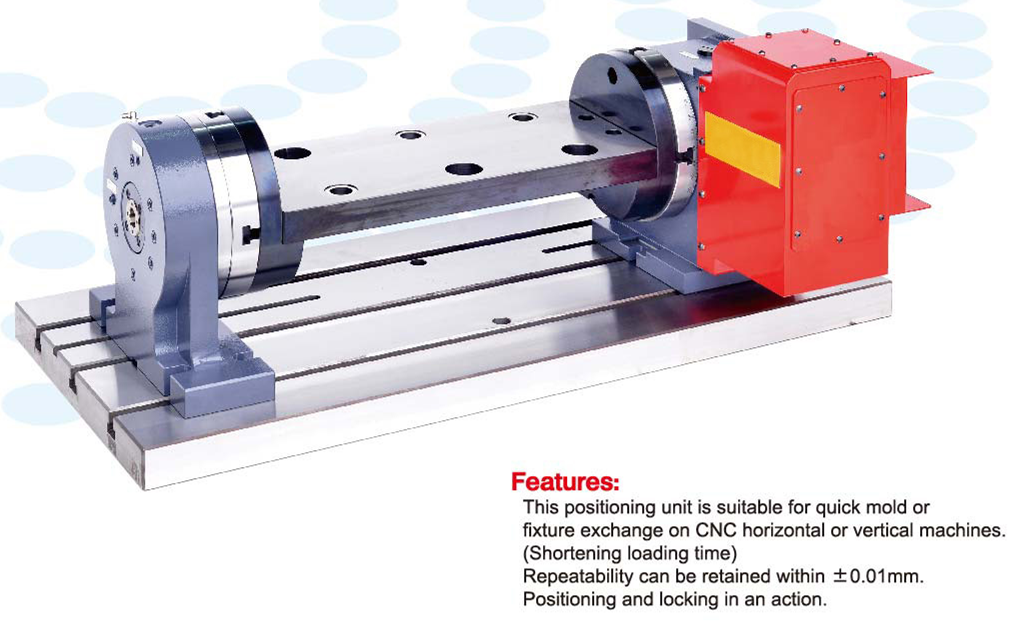

QUICK CHANGE TYPE VISE WITH THE 4TH AXIS
Click on product image magnification
Online inquiry

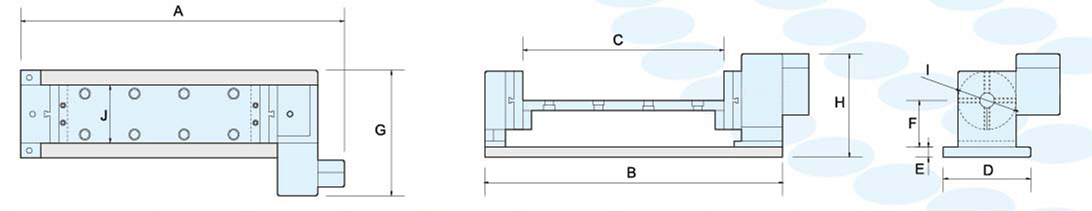

| MODEL | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| BLS-2520 | 650 | 570 | 310 | 300 | 40 | 160 | 430 | 355 | 160 | 200 |
| BLS-4020 | 840 | 720 | 460 | 300 | 40 | 160 | 430 | 355 | 160 | 200 |
| BLS-5020 | 900 | 820 | 560 | 300 | 45 | 160 | 430 | 355 | 160 | 200 |
| BLS-6320 | 1030 | 950 | 690 | 300 | 50 | 160 | 430 | 355 | 160 | 200 |
| BLS-2530 | 650 | 570 | 310 | 400 | 40 | 210 | 480 | 405 | 160 | 300 |
| BLS-4030 | 840 | 720 | 460 | 400 | 40 | 210 | 480 | 405 | 160 | 300 |
| BLS-5030 | 900 | 820 | 560 | 400 | 45 | 210 | 480 | 405 | 160 | 300 |
| BLS-6330 | 1030 | 950 | 690 | 400 | 50 | 210 | 480 | 405 | 160 | 300 |
Next：HMG MULTIGRIP VISE
Previous：BLS QUICK CHANGE TYPE VISE
