MULTIGRIP VISE GROUP
Click on product image magnification
Online inquiry

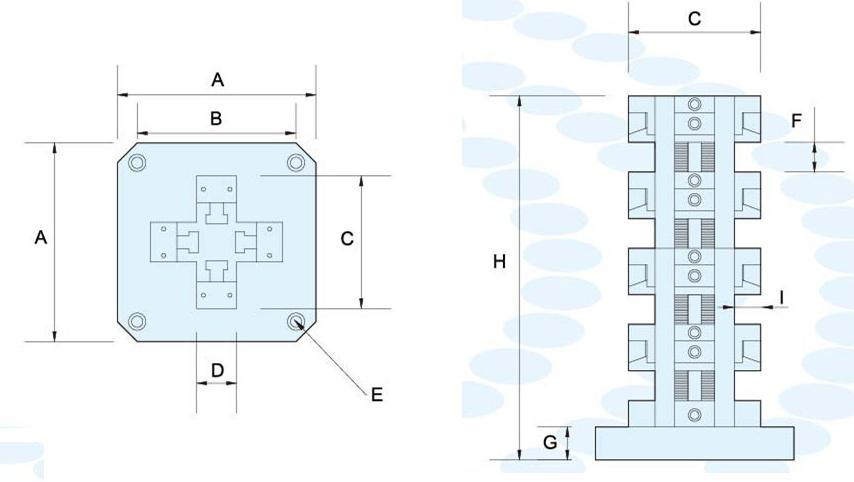

| MODEL | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| HMG-6025-4V | 300 | 240 | 200 | 60 | M16 | 25 | 30 | 280 | 40 |
| HMG-6040-4V | 300 | 240 | 200 | 60 | M16 | 43 | 30 | 430 | 40 |
| HMG-6050-4V | 300 | 240 | 200 | 60 | M16 | 40 | 30 | 530 | 40 |
| HMG-6063-4V | 300 | 240 | 200 | 60 | M16 | 73 | 30 | 660 | 40 |
| HMG-9025-4V | 300 | 240 | 320 | 90 | M16 | 99 | 35 | 285 | 45 |
| HMG-9040-4V | 300 | 240 | 320 | 90 | M16 | 29 | 35 | 435 | 45 |
| HMG-9050-4V | 300 | 240 | 320 | 90 | M16 | 26 | 35 | 535 | 45 |
| HMG-9063-4V | 300 | 240 | 320 | 90 | M16 | 59 | 35 | 665 | 45 |
