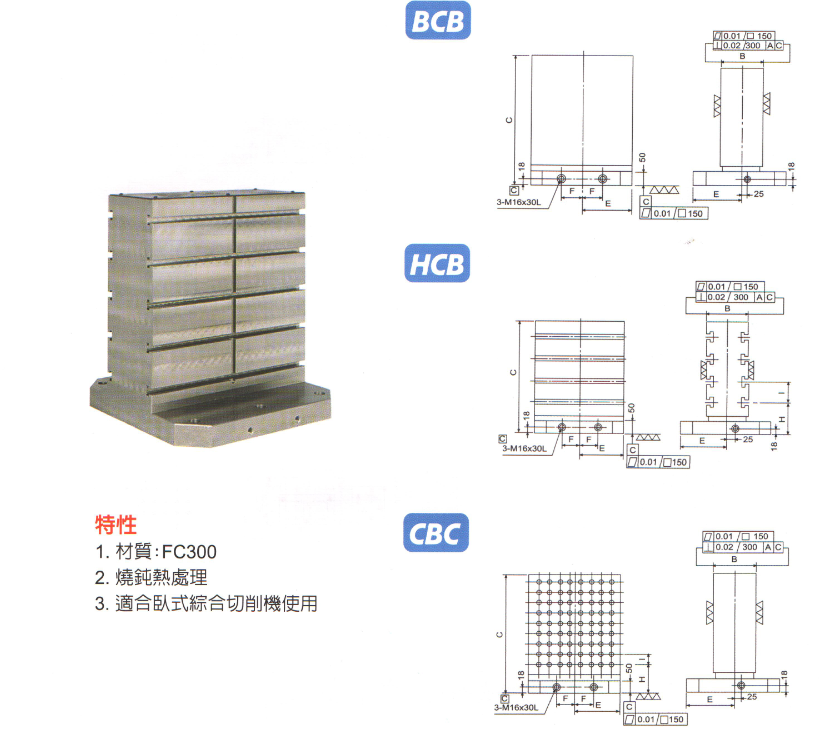

型号 MODEL |
A | B | C | D | E | F | G | H | I | J |
重量 WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BCB-400x150x500P | 400 | 150 | 500 | 320 | 200 | 55 | 50 | ||||
| BCB-500x200x600P | 500 | 200 | 600 | 400 | 250 | 75 | 60 | ||||
| BCB-630x250x700P | 630 | 250 | 700 | 500 | 315 | 100 | 65 | ||||
| BCB-800x300x800P | 800 | 300 | 800 | 640 | 400 | 135 | 80 | ||||
| HCB-400x150x500S | 400 | 150 | 500 | 320 | 200 | 55 | 50 | 100 | 100x4 | 18 | |
| HCB-500x200x600S | 500 | 200 | 600 | 400 | 250 | 75 | 60 | 100 | 100x5 | 18 | |
| HCB-630x250x700S | 630 | 250 | 700 | 500 | 315 | 100 | 65 | 150 | 125x5 | 18 | |
| HCB-800x300x800S | 800 | 300 | 800 | 640 | 400 | 135 | 80 | 150 | 150x5 | 18 | |
| HBC-400x150x500V | 400 | 150 | 500 | 320 | 200 | 55 | 50 | 125 | 50 | M16-7x8x2 | |
| HBC-500x200x600V | 500 | 200 | 600 | 400 | 250 | 75 | 60 | 125 | 50 | M16-9x10-2 | |
| HBC-630x250x 700V | 630 | 250 | 700 | 500 | 315 | 100 | 65 | 125 | 50 | M16-11x12x2 | |
| HBC-800x300x800V | 800 | 300 | 800 | 640 | 400 | 135 | 80 | 125 | 50 | M16-15x 14x2 |
