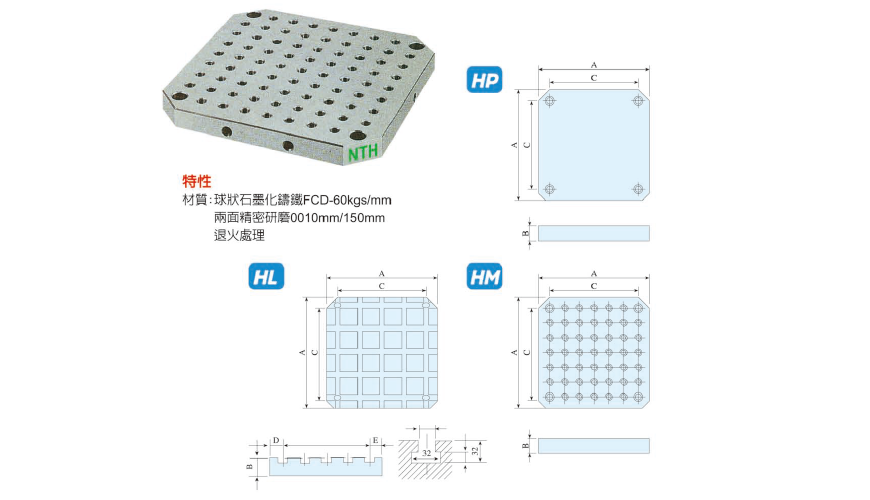

型号 MODEL |
A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| HP300X300X40 | 300 | 40 | 240 |
|
|
|
|
| HP400X400X40 | 400 | 40 | 320 |
|
|
|
|
| HP500X500X40 | 500 | 40 | 400 |
|
|
|
|
| HP600X600X45 | 600 | 45 | 500 |
|
|
|
|
| HP630X630X70 | 630 | 70 | 500 |
|
|
|
|
| HL400X400X70 | 400 | 70 | 320 | 40 | 40 | 80 | 18 |
| HL500X500X70 | 500 | 70 | 400 | 50 | 50 | 100 | 18 |
| HL630X630X70 | 630 | 70 | 500 | 65 | 65 | 65 | 18 |
| HL800X800X70 | 800 | 70 | 600 | 80 | 80 | 100 | 18 |
| HM300X300X40 | 300 | 40 | 240 |
|
|
|
|
| HM400X400X40 | 400 | 40 | 320 |
|
|
|
|
| HM500X500X40 | 500 | 40 | 400 |
|
|
|
|
| HM600X600X45 | 600 | 45 | 500 |
|
|
|
|
| HM630X630X70 | 630 | 70 | 500 |
|
|
|
|
| HM800X800X70 | 800 | 70 | 600 |
|
|
|
|
| HT800X2300X85 | 800 | 2300 | 85 |
|
|
|
|
