品牌：NTH
|

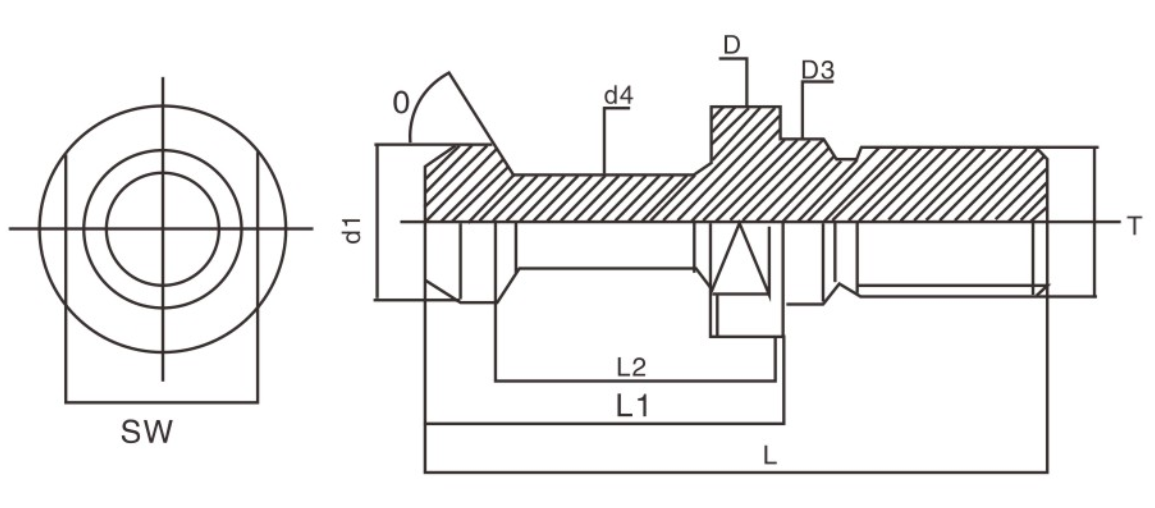

规格SPEC. 型号MODEL |
D | d1 | d2 | d3 | L | L1 | T |
重量 Weight (KGS) |
|---|---|---|---|---|---|---|---|---|
| BT30-45° | 16.5 | 11 | 7 | 12.5 | 43 | 23 | M12 | 0.04 |
| BT40-45° | 23 | 15 | 10 | 17 | 60 | 35 | M16 | 0.1 |
| BT50-45° | 38 | 23 | 17 | 25 | 85 | 45 | M24 | 0.3 |
| BT30-60° | 16.5 | 11 | 7 | 12.5 | 43 | 23 | M12 | 0.04 |
| BT40-60° | 23 | 15 | 10 | 17 | 60 | 35 | M16 | 0.1 |
| BT50-60° | 38 | 23 | 17 | 25 | 85 | 45 | M24 | 0.3 |
| BT30-90° | 16.5 | 11 | 7 | 12.5 | 43 | 23 | M12 | 0.04 |
| BT40-90° | 23 | 15 | 10 | 17 | 60 | 35 | M16 | 0.1 |
| BT50-90° | 38 | 23 | 17 | 25 | 85 | 45 | M24 | 0.3 |
