6-jaw scroll chuck plain back
Click on product image magnification
Online inquiryEasy to install.
Self-centering chuck improve efficiency.
SE types are specially meet for drilling, endmilling, tapping or grinding in tool grinders.
Huge bore diameter design for wider application of bar workpieces.
SE type scroll chuck feature gripping for thin tube and high roundness accuracy.
The body is made of highly strength and durability MEEHANITE. It is suitably used for high speed revolution also durable 3 times more than regular material.
單位 : mm
規格
把手容許力
矩(kgf‧m)
挾持力
(kgf)
最高轉速
(r.p.m.)
重量
(kg)
慣性矩
I(kg‧m2 )

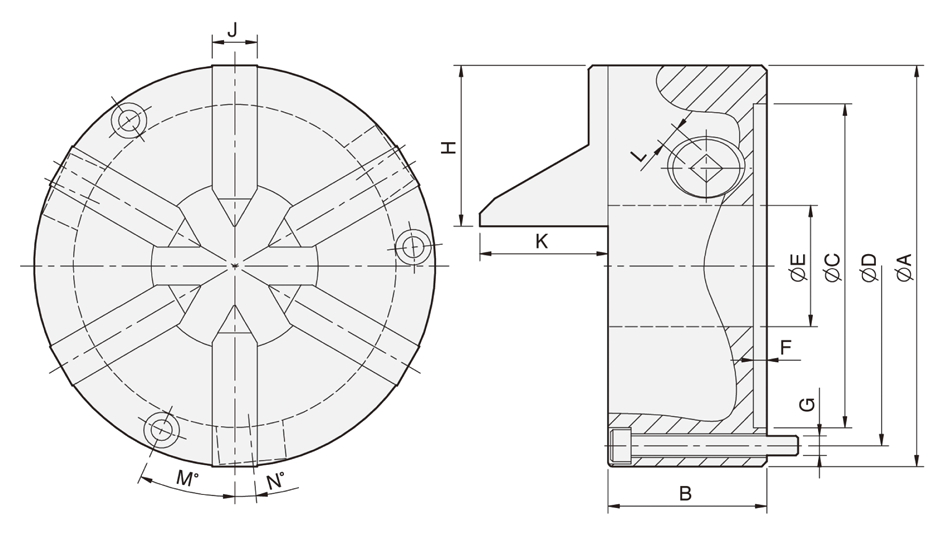

型式
A
B
C
D
E
F
G
H
J
K
L
M
N
挾持範圍
外徑範圍
內徑範圍
SE-4
112
66
80
95
32
4.8
3-M8
45
14
39.7
8
30
6.5
1.6
440
1200
4
-
Ø2-Ø32
SE-6
165
67
130
147
51
5.5
3-M8
66.5
19
40.7
10
23.3
6.2
2.8
660
1200
9
0.03
Ø3-Ø51
SE-7
192
76.5
155
172
80
5.5
3-M10
77
21.5
61.5
11
24
5.3
3.6
850
1000
14
0.06
Ø3-Ø81
