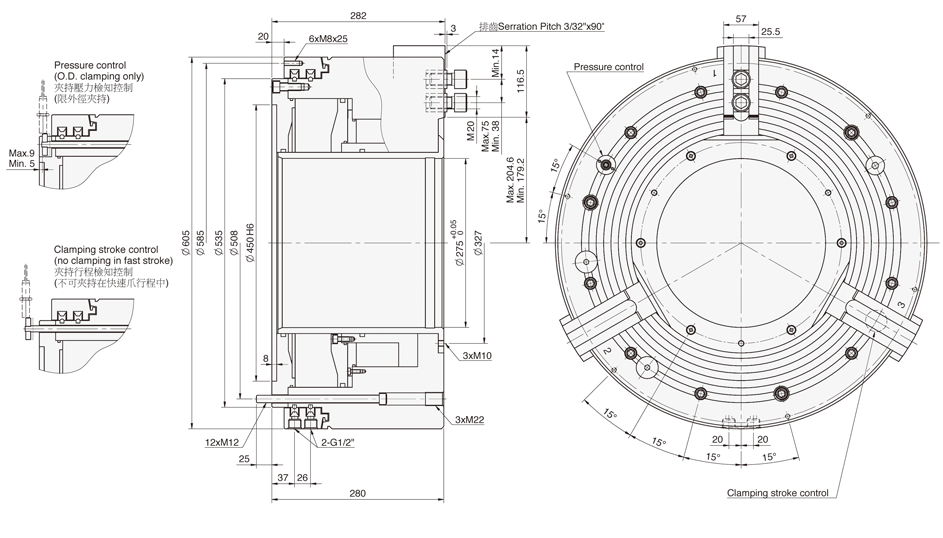

Pneumatic power chuck
Click on product image magnification
Online inquiryAir chuck for external clamping with built-in pneumatic cylinder.
Fast and clamping jaw stroke.
Clamping pressure control.
Clamping stroke control.
Unit : mm
| Model/size |
Through hole Dia. (mm) |
Total jaw stroke (mm) |
Rapid jaw stroke (mm) |
Gripping jaw stroke (mm) |
Eff. piston area (cm2) |
Operating pressure Min.-Max.(bar) |
Gripping force* (KN.) |
Max. RPM (r.p.m.) |
Weight (kg) |
Inertia (kg‧m2 ) |
Air consumption* (L) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 600-275 | 275 | 25.4 | 16.9 | 8.5 | 954 | 2-10 | 180 | 1100 | 360 | 20.6 | 39.5 |
