AUTO-STRONG PRODUCTS Hydraulic Cylinder

M HIGH SPEED THROUGH HOLE ROTARY HYDRAULIC CYLINDER

High Speed Through-hole Rotary Hydraulic Cylinder

Click on product image magnification

Download

Online inquiry

Products in detail

Compact and lightweight: Comparing with the regular product, it is compact (reduced to MAX 95mm) and lighter (weighted MAX 4.5kg). It’s more stable to reduce the burden of the machinery at high speed turning.

The largest bore: Comparing with the regular product, it has about 20% larger bore diameter for utilizing the capacity of machinery.

The safety structure: It can retain the gripping force by check valve which prevents the workpiece from flying out when the pressure declining sharply.

Reduce the weight of the spindle.

Unit : mm

Model/Size Piston Dia.
(mm) 		Eff. piston area
(cm2)
extend /retract 		Max Tube output power
KN(kgf)
extend/retract 		Piston Stroke
(mm)

Max operatin

ghydraulic pressure

(kgf / cm2) 		Max. RPM
(r.p.m.) 		Inertia
(kg‧m2 ) 		Weight
(kg) 		Total Leakage
L/min
M0928 90 53.2 / 48.3

19.9(2029)

18(1835)

10 40.8 8000 0.006 5.5 3
M1036 105 71 / 68.5

26(2651)

25(2549)

15 40.8 8000 0.011 8.6 3
M1038 105 71 / 66

26(2651)

24.5(2498)

15 40.8 8000 0.011 8.5 3
M1236 125 100 / 89

38(3875)

33(3365)

15 40.8 7000 0.019 13 3
M1246 125 100 / 89

38(3875)

33(3365)

15 40.8 7000 0.019 12 3
M1546 155 161 / 154

60(6118)

57.8(5894)

22 40.8 6200 0.056 18 3.9
M1552 155 161 / 150

60(6118)

56(5710)

22 40.8 6200 0.052 16.8 3.9
M1868 180 198 / 197

74(7546)

73.5(7495)

25 40.8 4700 0.098 28 4.2
M1870 180 198 / 183

74(7546)

69(7036)

25 40.8 4700 0.095 26.5 4.2
M1875 180 198 / 183

74(7546)

69(7036)

25 40.8 4700 0.095 26 4.2
M1878 180 198 / 183

74(7546)

69(7036)

25 40.8 4700 0.095 25.5 4.2
M2085 205 252 / 234

94(9585)

88(8973)

30 40.8 3800 0.15 37.5 4.5
M2091 205 252 / 234

94(9585)

88(8973)

30 40.8 3800 0.15 37 4.5
M2511 250 348 / 336

124(12644)

120(12236)

23 40.8 2800 0.45 57 7

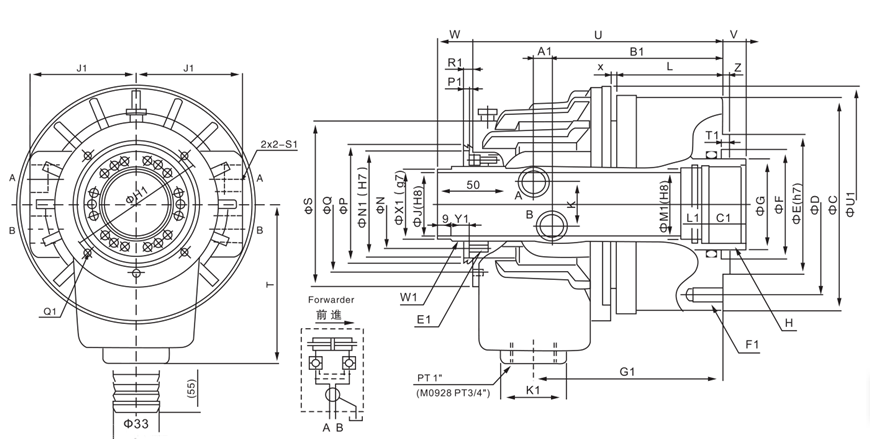

Model/size C1 E1 F1 G1 H1 J1 K1 L1 M1 N1
M0928 25 8-M6x10 6-M8x15 110 76 58 44 15 34 53
M1036 25 6-M5x10 6-M10x17 126 88 68 53 15 38 64
M1038 25 6-M5x10 6-M10x17 126 88 68 53 15 40 64
M1236 25 4-M6x12 12-M10x20 135 98 76 47 15 38 76
M1246 30 4-M6x12 12-M10x20 135 98 76 47 15 50 76
M1546 30 4-M6x12 12-M10x20 145 110 86 47 15 50 85
M1552 30 4-M6x12 12-M10x20 145 110 86 47 15 55 85
M1868 35 4-M6x12 12-M10x20 166 155 101 47 15 70 108
M1870 35 4-M6x12 12-M10x20 166 155 101 47 15 75 108
M1875 35 4-M6x12 12-M10x20 166 155 101 47 15 80 108
M1878 35 4-M6x12 12-M10x20 166 155 101 47 20 82 108
M2085 35 4-M6x12 12-M12x24 182 165 110 47 20 89 120
M2091 35 4-M6x12 12-M12x24 182 165 110 47 15 95 120
M2511 45 4-M6x12 12-M16x32 197 206 129 55 20 123 160


Model/size O1 P1 Q1 R1 S1 T1 U1 W1 X1 B C
M0928 14 4 4-M4x7 5 PT 1/4" 5 116 M34x1.5 32 85 120
M1036 14 4 6-M5x12 4 PT 3/8" 6 136 M44x1.5 42 101 136
M1038 14 4 6-M5x12 4 PT 3/8" 6 136 M44x1.5 42 101 136
M1236 14 4 4-M5x12 6 PT 1/2" 6 169 M52x1.5 50 99 155
M1246 14 4 4-M5x12 6 PT 1/2" 6 169 M52x1.5 50 99 155
M1546 14 4 4-M6x12 7 PT 1/2" 6 187.5 M58x1.5 56 103 190
M1552 16 4 4-M6x12 7 PT 1/2" 6 187.5 M58x1.5 56 103 190
M1868 16 4 4-M6x12 7.5 PT 1/2" 6 220 M84x2 81 126 215
M1870 16 4 4-M6x12 7.5 PT 1/2" 6 220 M84x2 81 126 215
M1875 16 4 4-M6x12 7.5 PT 1/2" 6 220 M84x2 81 126 215
M1878 16 4 4-M6x12 7.5 PT 1/2" 6 220 M84x2 81 126 215
M2085 16 4 4-M6x12 7 PT 1/2" 6 267 M99x2 96 141 240
M2091 16 4 4-M6x12 7 PT 1/2" 6 267 M99x2 96 141 240
M2511 18 5 4-M6x12 7 PT 1/2" 6 294 – 134.6 186 310


Model/size D E F G H J K L N P Q S T U Vmax. Vmin. Wmax. Wmin. X Z A1 B1
M0928 100 80 65 44 M38x1.5 28 25 54 44 59 65 90 105 156 14 4 35 25 3 5 9 108
M1036 115 100 65 48 M42x1.5 36 32 62 55 73 88 104 115 174.5 15 0 39 24 2.5 5 11 120.5
M1038 115 100 65 50 M44x1.5 38 32 71 55 73 88 104 115 174.5 15 0 39 24 2.5 5 11 120.5
M1236 130 100 80 65 M42x1.5 36 36 67 64 85 98 118 114 179 15 0 40 25 4 5 11 126.5
M1246 130 100 80 65 M55x2 46 36 67 64 85 98 118 114 179 15 0 40 25 4 5 11 126.5
M1546 170 130 85 65 M55x2 46 36 75 73 96 114 137 130 191 22 0 47 25 4 5 11 136
M1552 170 130 85 70 M60x2 52 36 75 73 96 114 137 130 191 22 0 47 25 4 5 11 136
M1868 190 160 120 85 M75x2 68 36 84 98 121 140 166 160 225 25 0 50 25 4 5 17.5 152.5
M1870 190 160 120 95 M78x2 70 36 84 98 121 140 166 160 225 25 0 50 25 4 5 17.5 152.5
M1875 190 160 120 95 M85x2 75 36 84 98 121 140 166 160 225 25 0 50 25 4 5 17.5 152.5
M1878 190 160 120 95 M87x2 78 36 84 98 121 140 166 160 225 25 0 50 25 4 5 17.5 152.5
M2085 215 180 140 110 M93x2 85 36 93 108 138 158 182 185 248 30 0 55 25 3 5 21 166.5
M2091 215 180 140 110 M100x2 91 36 93 108 138 158 182 185 248 30 0 55 25 3 5 21 166.5
M2511 215 230 166 140 M130x2 117.5 36 89 148 178 190 232 215 290 24 1 38 15 3 6 27 184.5
