2 jaw and 3 jaw compatible power chuck
Click on product image magnification
Online inquiryBrand：NTH
1. The function of 2 jaw chuck and 3 jaw chuck can be used in the same chuck.
2. NO need to change the chuck,just change the jaws when change the round workpieces to irregular type.
3. All the chuck's sliding surfaces are hardened and ground to increase rotary accuracy and the service life.

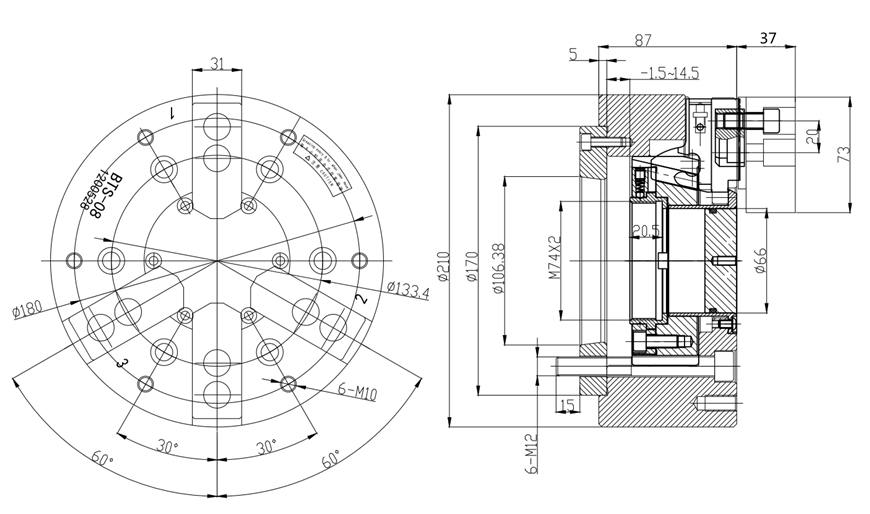

Size Unit:mm
|
Spec/ Model |
Through hole dia. |
Plunger stroke |
Jaw stroke (Dia) |
Max clamping dia |
Min clamping dia |
2 Jaw
Max.D.B.Pull |
3 Jaw |
|---|---|---|---|---|---|---|---|
|
BTS-08A6 |
66 |
16 |
7.4 |
210 |
23 |
14.7(1470) |
21.5(2200) |
|
Spec/Model |
2 Jaw |
3 Jaw |
Max RPM |
Weight |
Matched cylinders |
2 Jaw |
3 Jaw |
|---|---|---|---|---|---|---|---|
|
BTS-08A6 |
37.9(3870) |
56.8(5800) |
4200 |
25 |
H-1552 |
1.2(12) |
1.8(18) |
Subject to technology changes without prior information
Non-standard requirements can be made
