HEAVY DUTY STRONG LONG NOSE LIVE CENTER
Click on product image magnification
Online inquiry
Type: Live centers series
Duty: Heavy
Application: CNC lathe, high speed lathe, gear hobbing machine
Working Usage: Applicable for high pushing force stong turning process,and slender workpiece turning process
Structure: Combination of thrust bearing with enhanced axial load design and needle bearing at front and rear place for radial load
TIR: Less than 0.002mm
Specification UNIT：mm
|

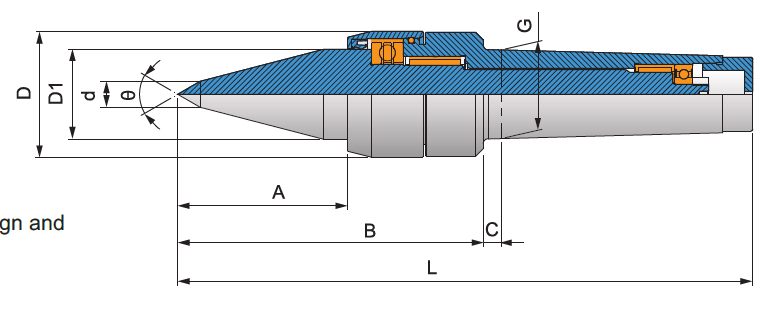

Model/Spec |
A | B | C | D | D1 | d | G | L | Ø |
Max. RPM |
Max. radial load |
Max. axial thrust force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TSC-663-5 | 75 | 143 | 9 | 63 | 44.8 | 12 | 44.399（MT5) | 278 | 60゜ | 3,500rpm | 3，080kg | 2,150kg |
Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
