SC-92 LIGHT DUTY LIVE CENTER

LIGHT DUTY LIVE CENTER

Click on product image magnification

Download

Online inquiry

Products in detail

Type: Live centers series
Duty: Light

Application: Center lathe

Working Usage: Applicable for ordinary workpiece turning process

Structure: Made of alloy steel and hardened to HRC 57-60,ground on ID and OD

TIR: Less than 0.002mm


Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.

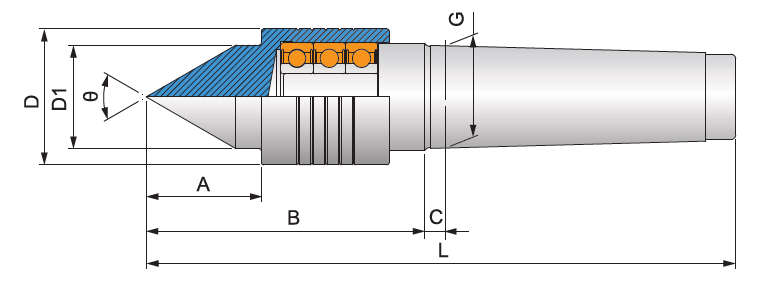

Specification    UNIT：mm

Model/Spec

A B C D D1 G L Ø

Max. RPM

Max. axial thrust force

SC-92-L-2 40 105 6 48 35 17.780（MT2) 174 60゜ 3,500rpm 160kg
SC-92-L-3 40 105 8 48 35 23.825（MT3) 192 60゜ 3,000rpm 250kg
SC-92-L-4 40 105 9 48 35 31.267（MT4) 213 60゜ 2,600rpm 400kg
SC-92-L-5 50 121 9 59 45 44.399（MT5) 256 60゜ 2,200rpm 800kg


Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.

Accessories Page
Center technical user manual
