CHANGEABLE LIVE CENTER WITH SELF COMPENSATING FACE DRIVER
Click on product image magnification
Online inquiryType: Face driving center,Compensating pins type
Application: CNC lathe and high speed lathe and auto feeder or other machine tool
Working Usage: Without turning the workpiece face and each drive pin can adjust the transmission force,better precision and stability for turning and reversing lathing process
Structure: Adopted the design of mechanical balance structure
TIR: Less than 0.005mm
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
Accessories: For SC-66-A group, center pins 09-09 and drive pins 10-10
For SC-66-B group, center pins 09-09 and drive pins 10-13
For SC-66-C group, center pins 09-06 and drive pins 10-17

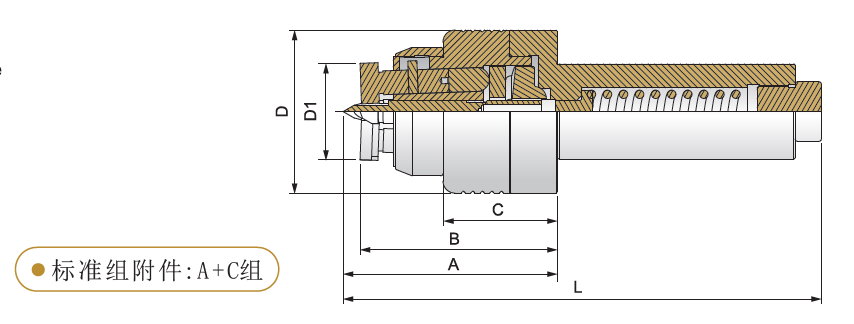

规格 / Specification 单位/ UNIT：mm
|
Model/Spec |
A | B | C | D | D1 | L |
Working range (mini pin--big pin) |
|---|---|---|---|---|---|---|---|
| SC-66-B-40A | 92 | 82.7 | 48 | 68.5 | 33.5 | 203 | 17--40mm |
| SC-66-B-40B | 92 | 82.7 | 48 | 68.5 | 36.8 | 203 | 15--45mm |
| SC-66-B-40C | 92 | 82.7 | 48 | 68.5 | 40.5 | 203 | 10--50mm |
