This product is mainly used to calibrate or support workpiece during processing, lt is used with standard chucks.
1. The internal adopts three precise deep groove ball bearings,lt is applicable to the high rotating speed processing

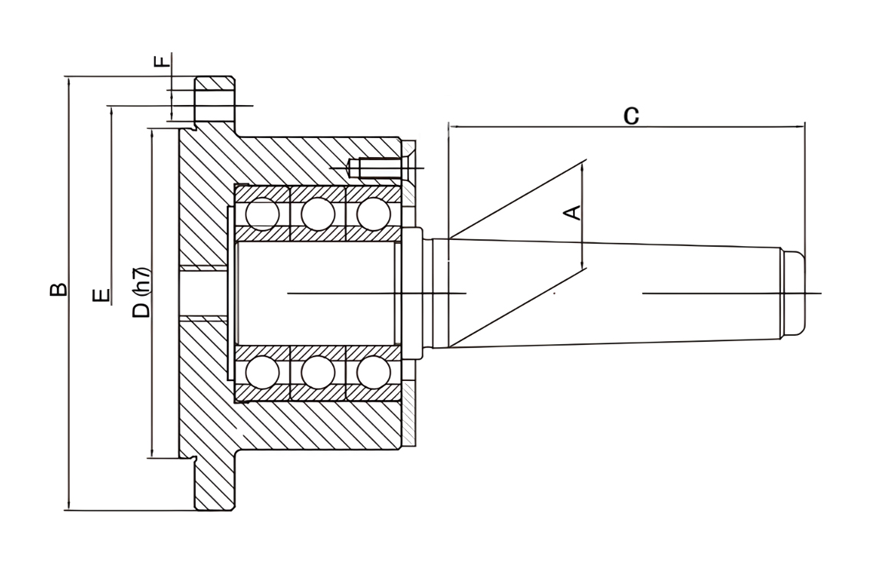

2.The connecting size for stangard 3-jaw self-centering chuck is used for the size of B,D,E,F and so ontcan be customized according to the cient's demand.
3.The main body and the taper shank adopt quality carbon steel ,with whole quenched,t is thus has good performance.
UNIT：mm
Model/Spec
Max load(KG)
Max. RPM
Accuracy(mm)
44.399
A
B
C
D
E
F
LCC-MT3
23.825
112
81
80
95
3-M8
800
2000rpm
0.005
LCC-MT4
31.267
132
102.5
100
115
3-M8
1000
1500rpm
0.01
LCC-MT5
167
129.5
130
147
3-M10
1500
800rpm
0.01
LCC-MT6
63.348
193
182
155
172
3-M10
1800
600RPM
0.01
