JAW BORING FIXTURE FOR SOFT JAWS(FINE ADJUSTING TYPE)
Click on product image magnification
Online inquiryFEATURE
To Suit for CNC lathe
This type jaw boring fixture with a continuous fine adjusting ring can provide accurate position, to reduce the abrasion of soft jaws.
Soft jaws can be made to requirements size by this fixture easily.
Only several simple process, soft jaws can be bored precisely.
With anticlockwise lock, the machining field can be easily expended.
SPECIF ICATIONS UNIT ：mm
|
Spec/Model |
A | B | C | D | E | F | G |
Jaw Stroke (Dia) |
Max Gripping (Kgf) |
Max RPM |
Weight
( Kg )
|
Matching Chuck |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL-100 (TLF-100) |
100 | 170 | 26 | 13 | 7 | 19 | 61 | 7.4 | 1500 | 800 | 2.7 | 5"/6"/8" |
|
TL-125 (TLF-125) |
125 | 200 | 26 | 16.3 | 8 | 19 | 61 | 7.4 | 1500 | 700 | 3.5 | 6"/8"/10" |
|
TL-160 (TLF-160) |
160 | 248 | 31 | 18.3 | 8 | 24 | 80 | 8.5 | 1750 | 600 | 5.6 | 8"/10"/12" |
*TL 3 jaw model
*TLF 4 jaw model

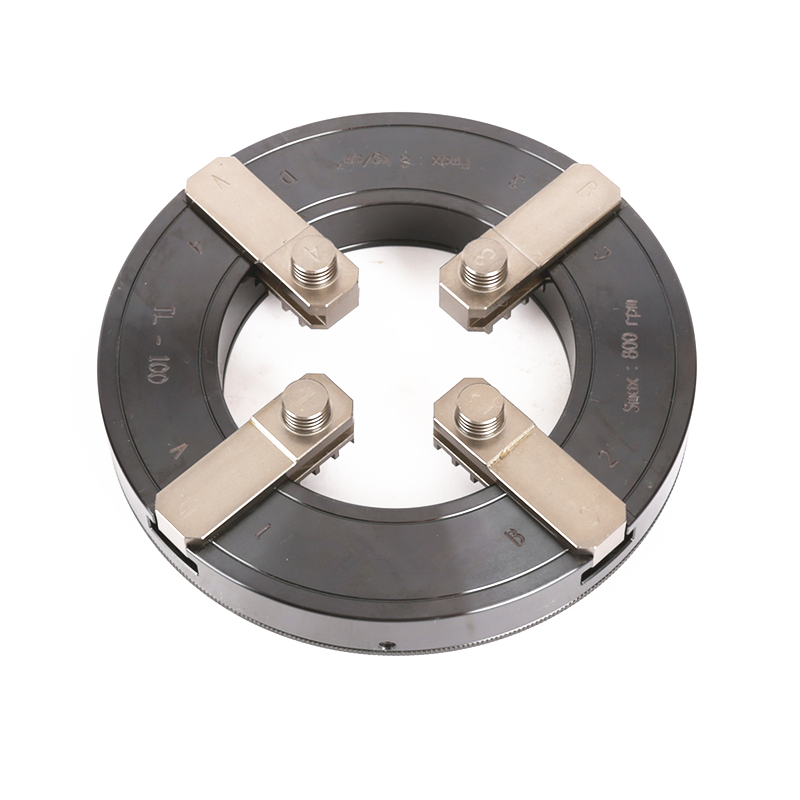

TLF4 jaw fine adjustment boring ring picture
Subject to technical changes
Next：FORMING PLATE FOR SOFT JAWS
Previous：JAW BORING RING FOR SOFT JAWS
