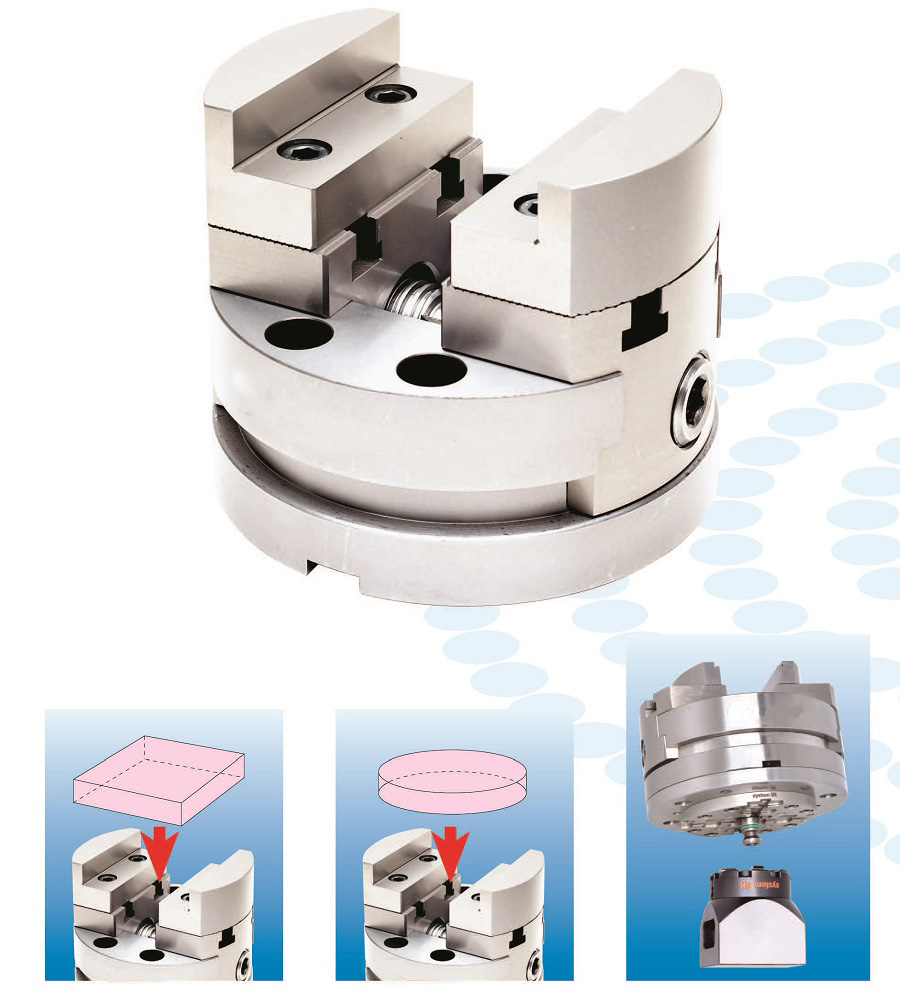

ROUND SELF-CENTERING VISE

Special purpose vise for 5 side machining centers

Click on product image magnification

Download

Online inquiry

Products in detail

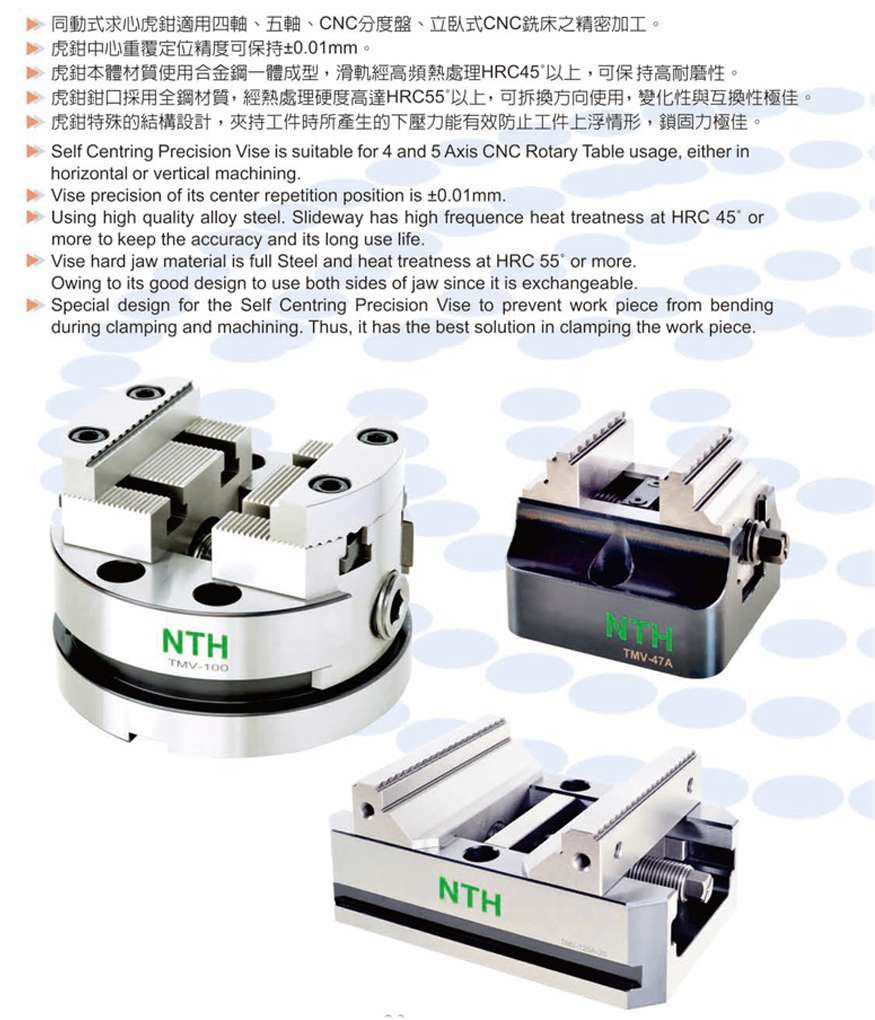

Vise for 5-side machining

型号

MODEL

A B C D E F G H I J 重量/N.W.
TMV-75 80 70 30 5 15 15 120 50 80 75 8
TMV-100 105 95 40 5 20 25 160 70 115 100 15
TMV-130 135 125 50 5 20 25 210 80 125 130 34
TMV-160 165 155 60 5 25 25 250 90 140 160 49

Adapting plate

型号

MODEL

A B C D E 重量/N.W.
TMV-102 159 22 130 130 M10 3.5
TMV-132 209 22 160 160 M12 6.5
TMV-162 249 22 200 200 M12 9

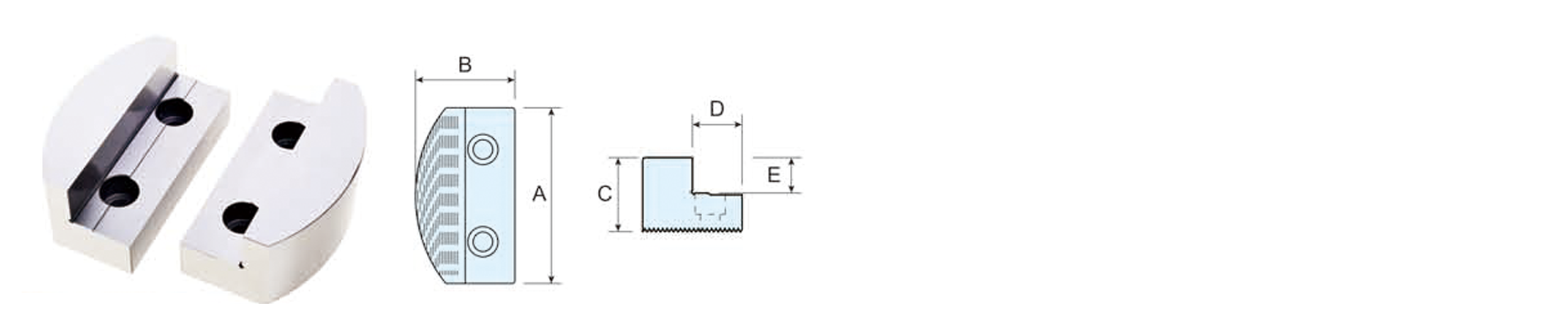

HIGH TYPE JAW

型号

MODEL

A B C D E
TMV-75-J6H 75 35 30 12 15
TMV-100-J6H 99 56 40 28 20
TMV-130-J6H 130 75 45 37 22
TMV-160-J6H 160 85 45 42 22

LOW TYPE JAW

型号

MODEL

A B C D E
TMV-75-J6 75 25 15 5 5
TMV-100-J6 99 33 15 5 5
TMV-130-J6 130 40 25 5 5
TMV-160-J6 160 45 25 5 5

JAGGED JAW

型号

MODEL

A B C D E
TMV-75-J9 75 25 15 3 3
TMV-100-J9 99 33 15 3 3
TMV-130-J9 130 40 25 3 3
TMV-160-J9 160 45 25 3 3

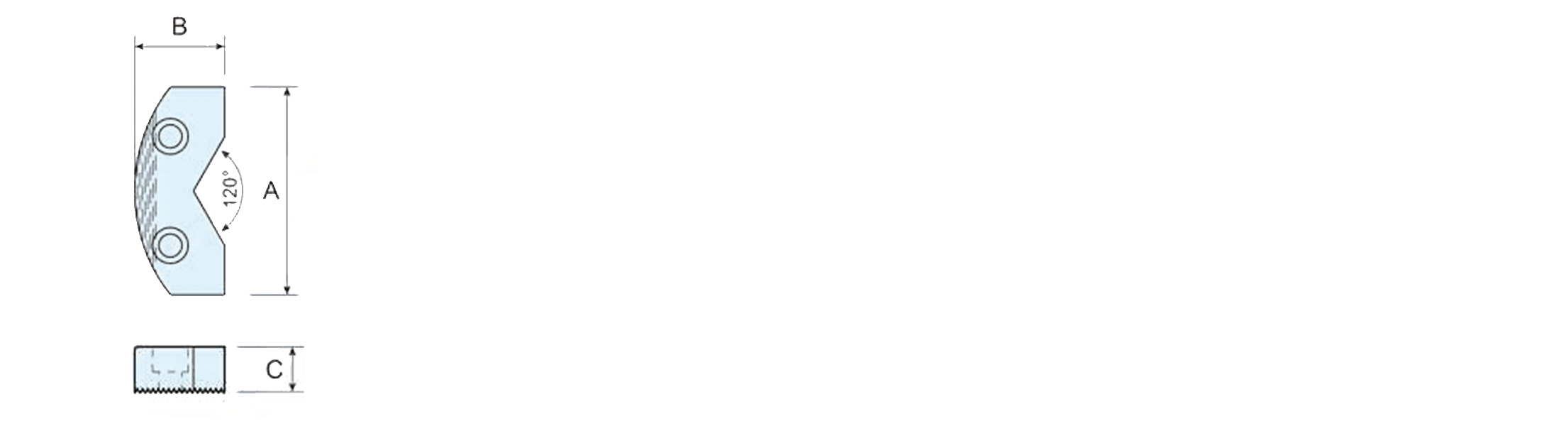

V JAW

型号

MODEL

A B C
TMV-75-J3 75 30 15
TMV-100-J3 99 38 15
TMV-130-J3 130 45 25
TMV-160-J3 160 50 25

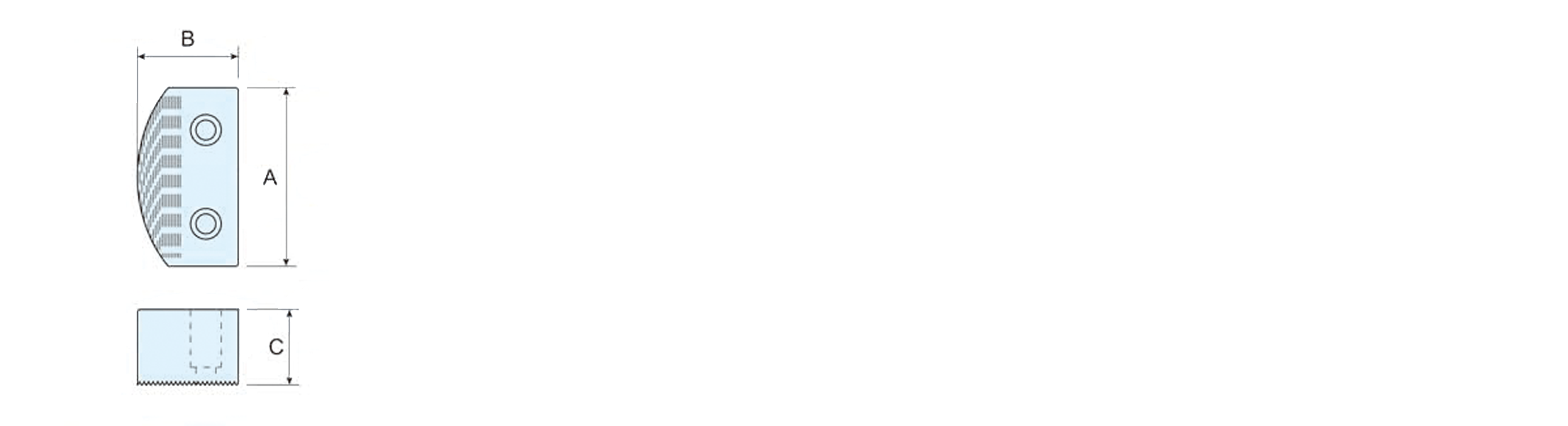

SOFT JAW

型号

MODEL

A B C
TMV-75-J1 75 30 30
TMV-100-J1 99 56 40
TMV-130-J1 130 75 45
TMV-160-J1 160 85 45

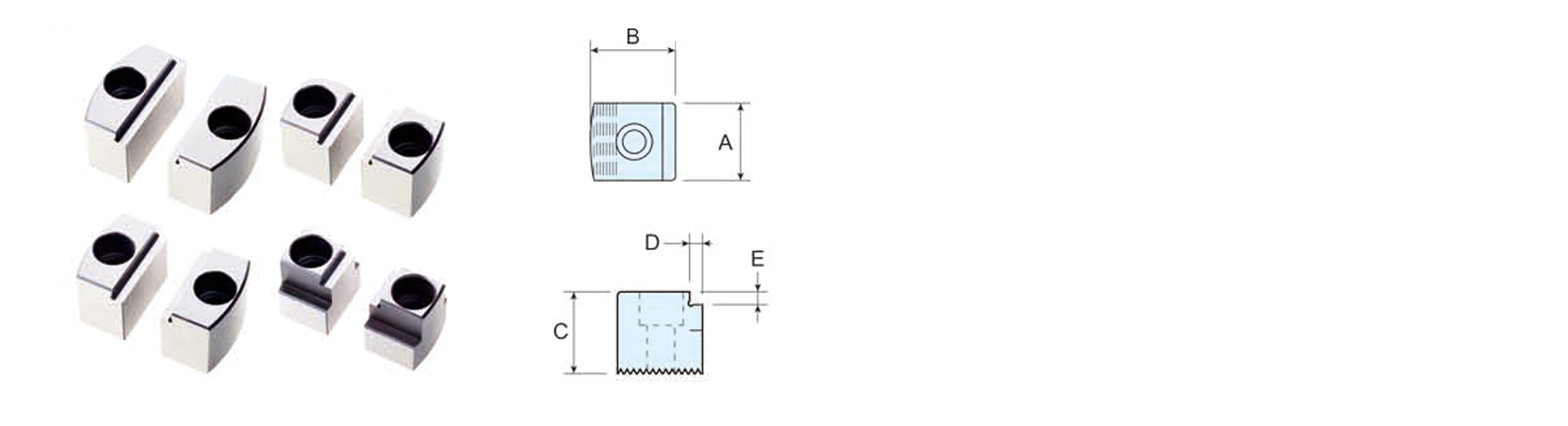

TMV-75  MINIATURE JAW

型号

MODEL

A B C D E
TMV-75-J6-20 20 25 30 5 5
TMV-75-J6-30 30 25 30 5 5
TMV-75-J6-40 40 25 30 5 5
TMV-75-J6-50 50 25 30 5 5
