Special purpose vise for 5 side machining centers
Click on product image magnification
Online inquiry
|

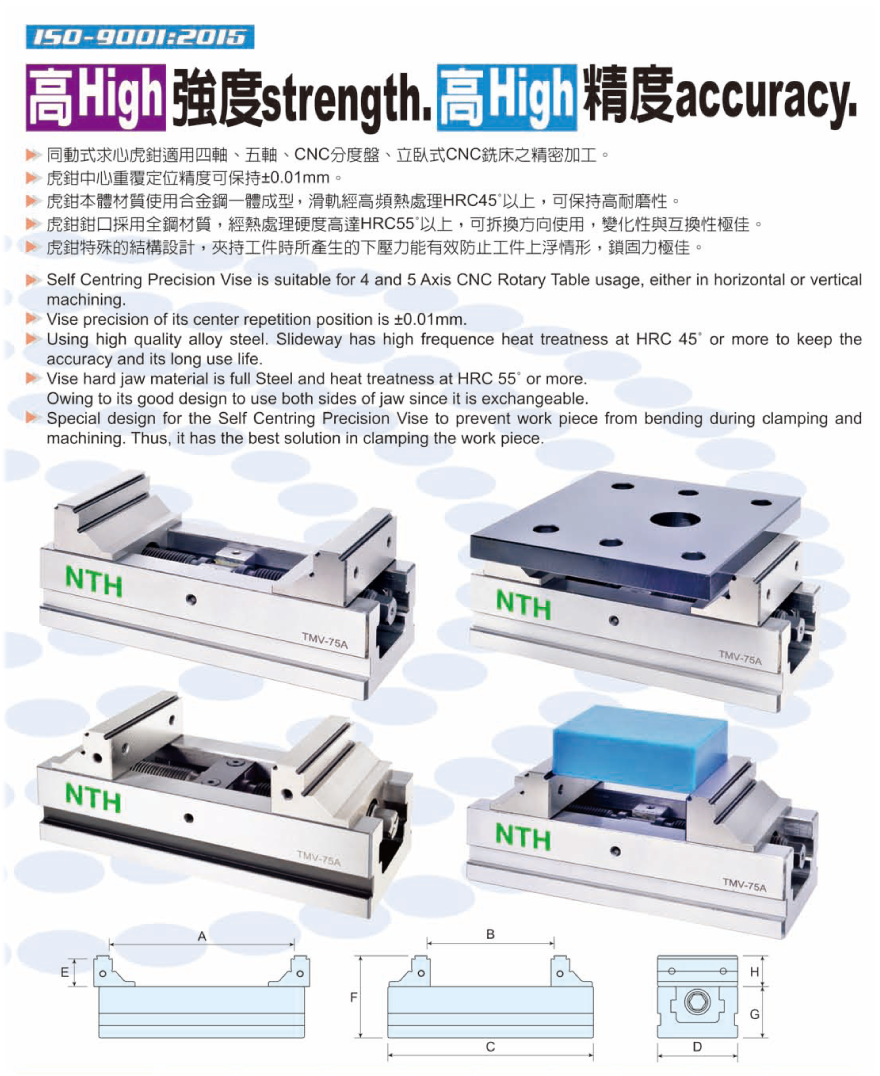

MODEL |
A | B | C | D | E | F | G | H | N.W. |
|---|---|---|---|---|---|---|---|---|---|
| TMV-75A | 180 | 123 | 200 | 78 | 27 | 80 | 50 | 30 | 6.6 |
|
MODEL |
A | B | C | D | E | F | G | H | I | J |
K |
N.W. |
N.W. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TMV-125-15A | 110 | 60 | 150 | 125 | 29 | 89 | 57 | 32 | 3 | 3 |
96 |
9 | 9 |
| TMV-125-20A | 165 | 115 | 200 | 125 | 29 | 89 | 57 | 32 | 3 | 3 | 96 | 9 | 11 |
|

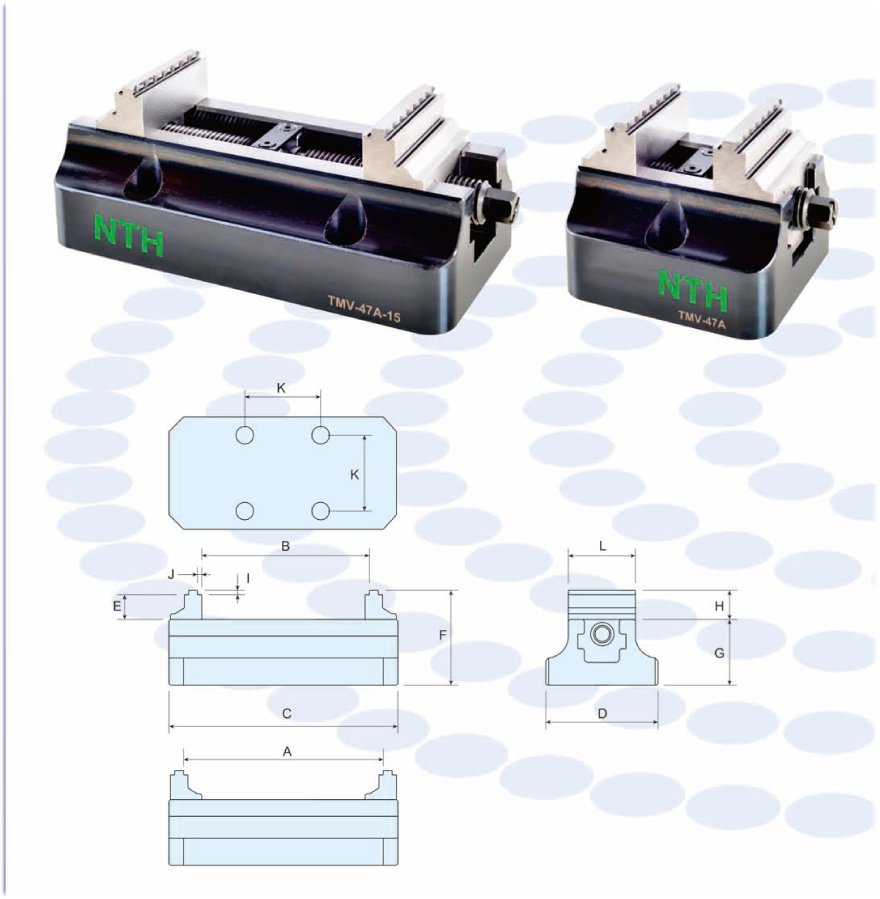

MODEL |
A | B | C | D | E | F | G | H | I | J |
K |
L |
N.W. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TMV-47-77A | 58 | 40 | 77 | 77 | 17 | 65 | 45 | 20 | 3 | 3 |
52 |
47 |
2 |
| TMV-47-157A | 138 | 120 | 157 | 77 | 17 | 65 | 45 | 20 | 3 | 3 | 52 | 47 | 3.5 |
|

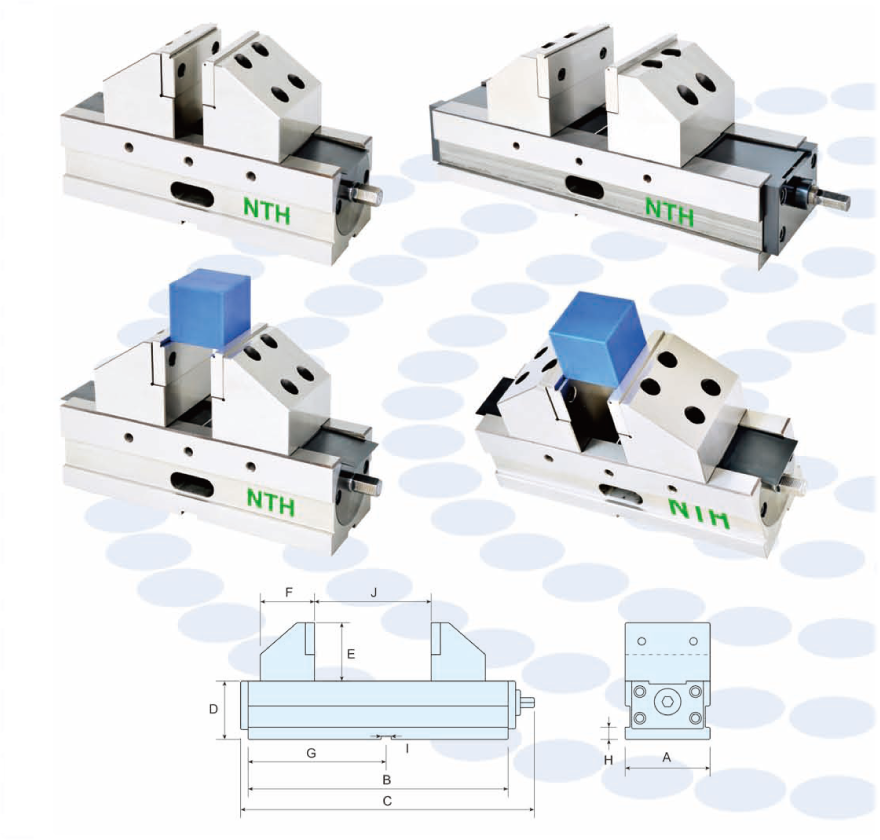

MODEL |
A | B | C | D | E | F | G | H | I | J |
N.W. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VSC-100-5XC | 100 | 310 | 340 | 95 | 90 | 85 | 155 | 23 | 18 | 30-110 | 37 |
| VSC-130-5XC | 130 | 410 | 510 | 100 | 100 | 90 | 205 | 23 | 18 | 30-220 | 45 |
| VSC-160-5XC | 160 | 490 | 590 | 110 | 110 | 102 | 245 | 23 | 18 | 30-280 | 68 |
|
VSC-200-5XC |
200 | 565 | 665 | 120 | 120 | 113 | 282 | 23 | 18 | 30-335 | 110 |
