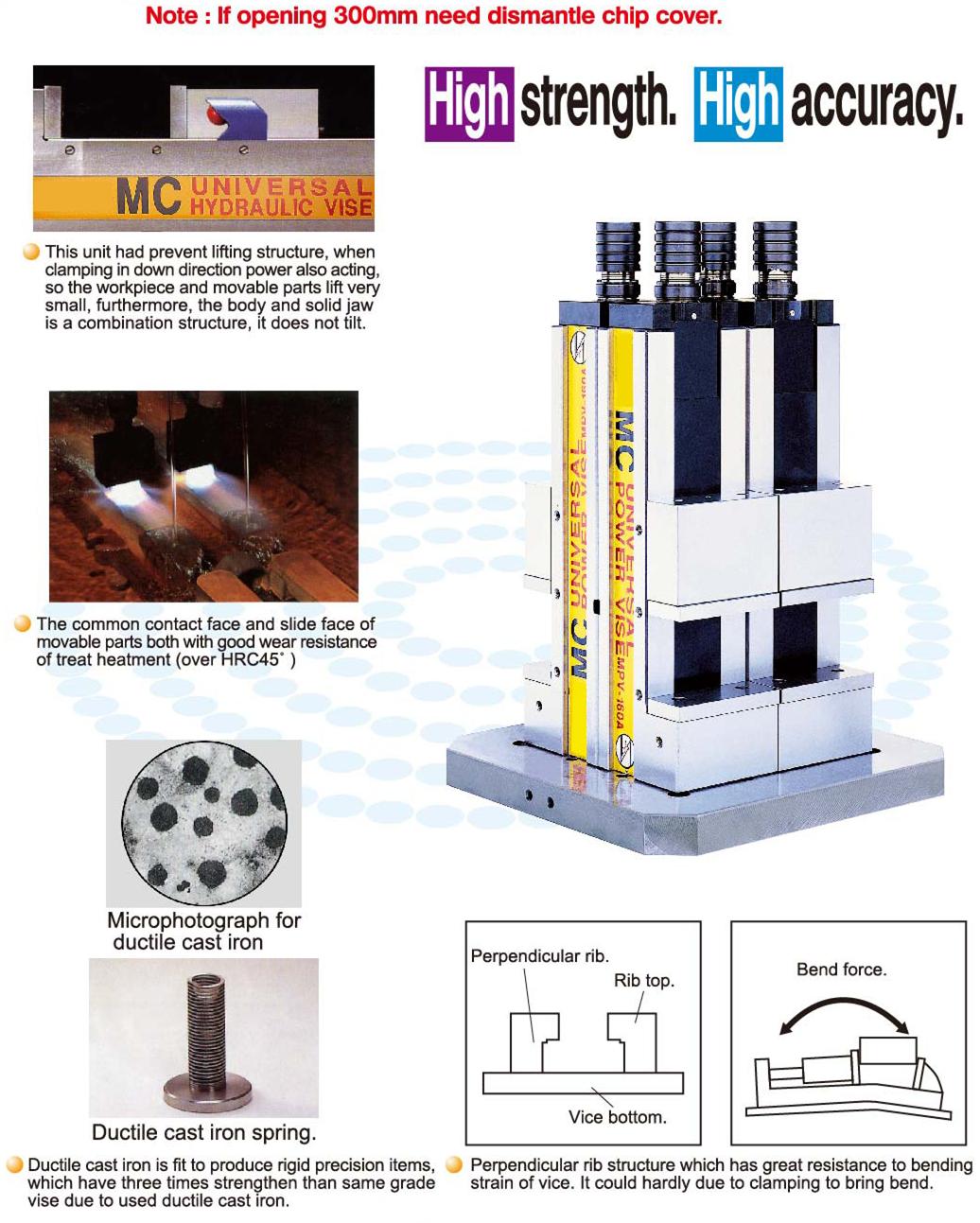

4 SET IN ONE UNIT VERTICAL PRECISION VICE
Click on product image magnification
Online inquiry

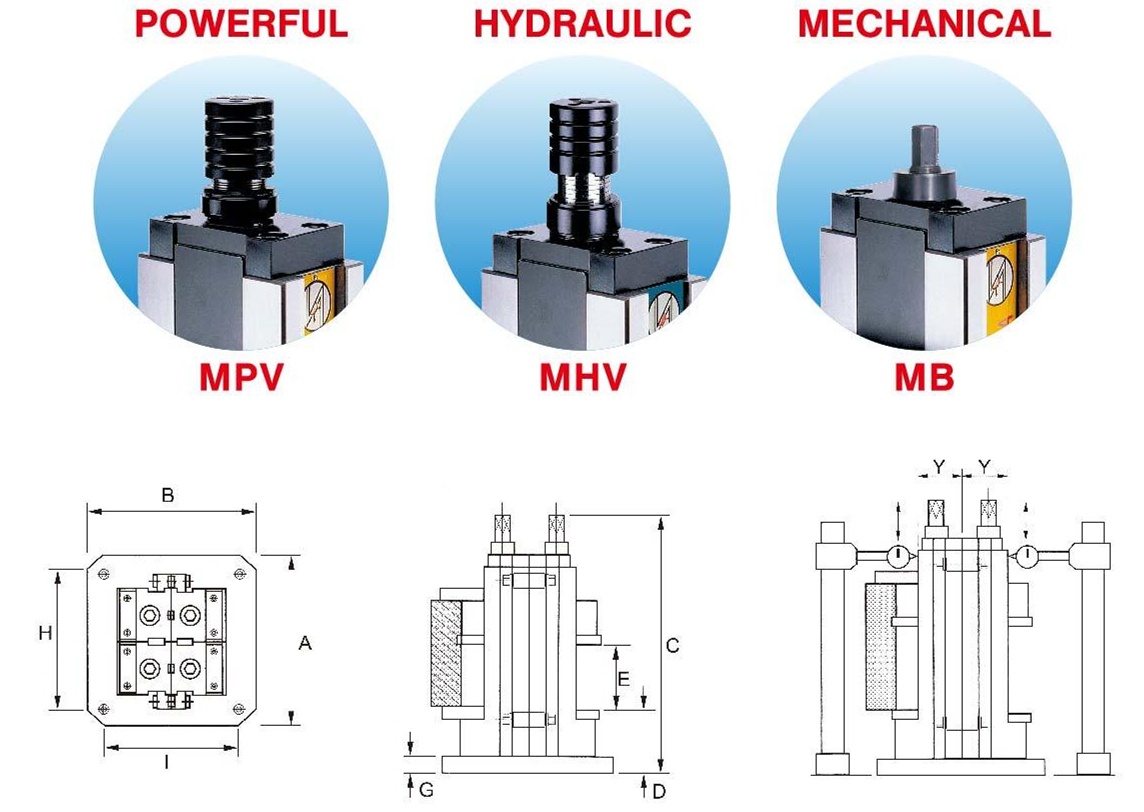

| MODEL | A | B | C | D | E | F | G | H | I | Clamping force |
|---|---|---|---|---|---|---|---|---|---|---|
| MB-100 4V | 400 | 400 | 530 | 120 | 150 | 45 | 40 | 320 | 320 | - |
| MB-130 4V | 400 | 400 | 580 | 125 | 200 | 50 | 40 | 320 | 320 | - |
| MB-160 4V | 500 | 500 | 680 | 143 | 280 | 60 | 40 | 400 | 400 | - |
| MB-200 4V | 500 | 500 | 730 | 148 | 300 | 70 | 40 | 400 | 400 | - |
| MHV-100 4V | 400 | 400 | 570 | 120 | 145 | 45 | 40 | 320 | 320 | 4000kgf |
| MHV-130 4V | 400 | 400 | 620 | 125 | 190 | 50 | 40 | 320 | 320 | 4500kgf |
| MHV-160 4V | 500 | 500 | 720 | 143 | 265 | 60 | 40 | 400 | 400 | 5000kgf |
| MHV-200 4V | 500 | 500 | 770 | 148 | 300 | 70 | 40 | 400 | 400 | 5500kgf |
| MPV-100 4V | 400 | 400 | 570 | 120 | 150 | 45 | 40 | 320 | 320 | 4000kgf |
| MPV-130 4V | 400 | 400 | 620 | 125 | 200 | 50 | 40 | 320 | 320 | 4500kgf |
| MPV-160 4V | 500 | 500 | 720 | 143 | 280 | 60 | 40 | 400 | 400 | 5000kgf |
| MPV-200 4V | 500 | 500 | 770 | 148 | 300 | 70 | 40 | 400 | 400 | 5500kgf |
