MB-4VL 4 SET IN ONE UNIT VERTICAL PRECISION VISE

MB-4VL 4 SET IN ONE UNIT VERTICAL PRECISION VISE

Click on product image magnification

Download

Online inquiry

Products in detail

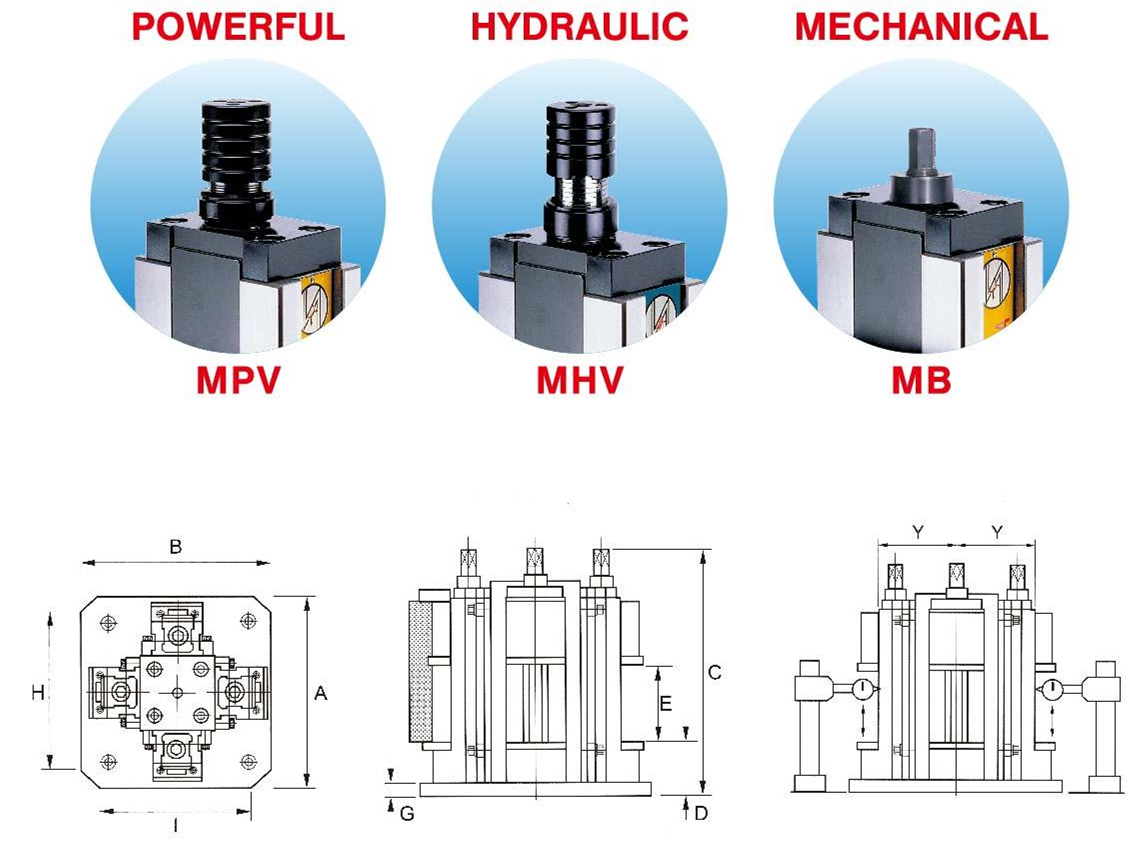

MODEL A B C D E F G H I Clamping force
MB-100 4VL 450 450 530 120 150 45 40 320 320 -
MB-130 4VL 500 500 580 125 200 50 40 400 400 -
MB-160  4VL 500 500 680 143 280 60 40 400 400 -
MB-200  4VL 600 600 730 148 300 70 40 500 500 -
MHV-100 4VL 450 450 570 120 145 45 40 320 320 4000kgf
MHV-130 4VL 500 500 620 125 190 50 40 400 400 4500kgf
MHV-160 4VL 500 500 720 143 265 60 40 400 400 5000kgf
MHV-200  4VL 600 600 770 148 300 70 40 500 500 5500kgf
MPV-100 4VL 450 450 570 120 150 45 40 320 320 4000kgf
MPV-130  4VL 500 500 620 125 200 50 40 400 400 4500kgf
MPV-160 4VL 500 500 720 143 280 60 40 400 400 5000kgf
MPV-200  4VL 600 600 770 148 300 70 40 500 500 5500kgf
