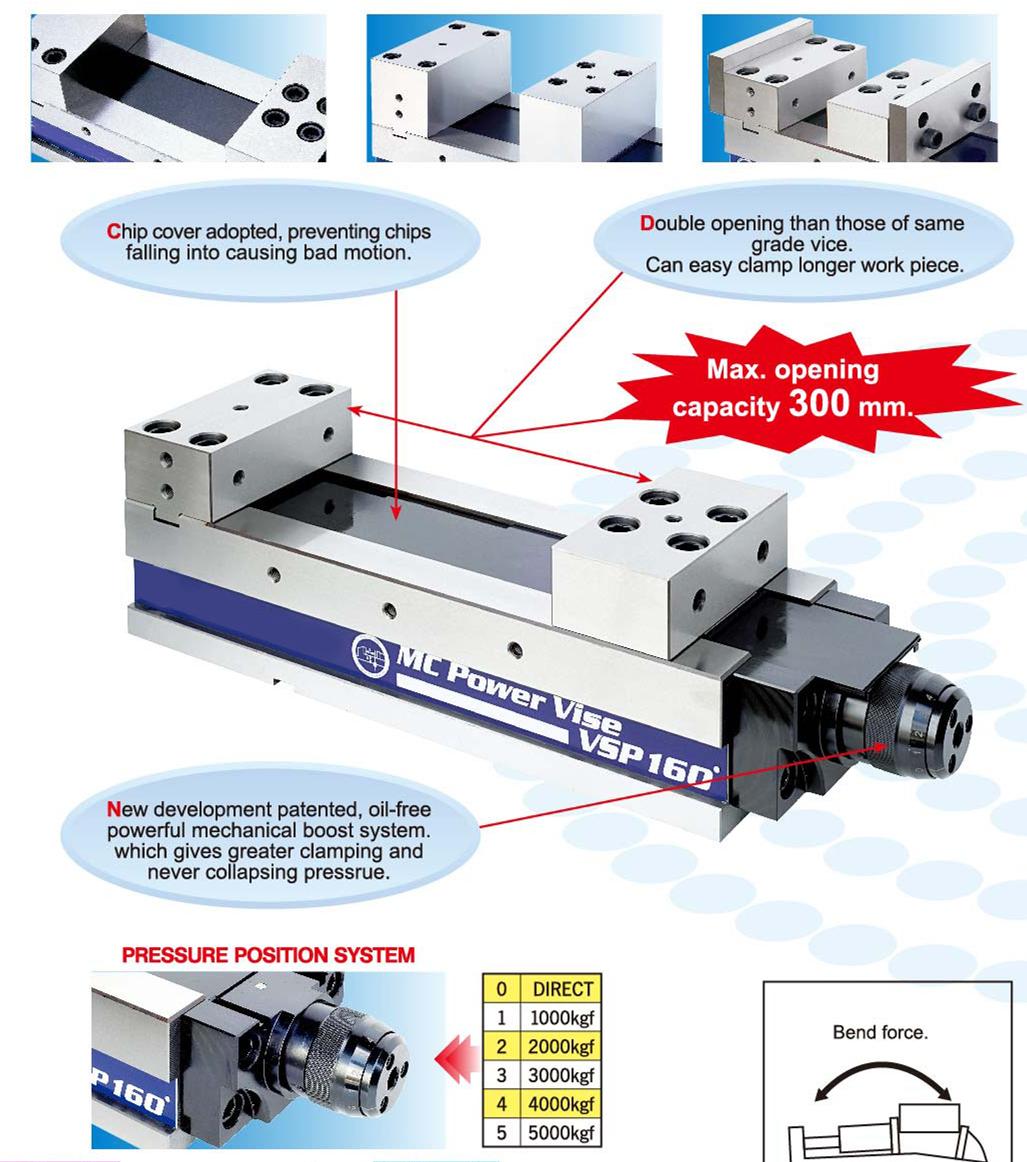

SUPER OPEN CONSTANT PRESSURE TYPE PRECISION VICE
Click on product image magnification
Online inquiry

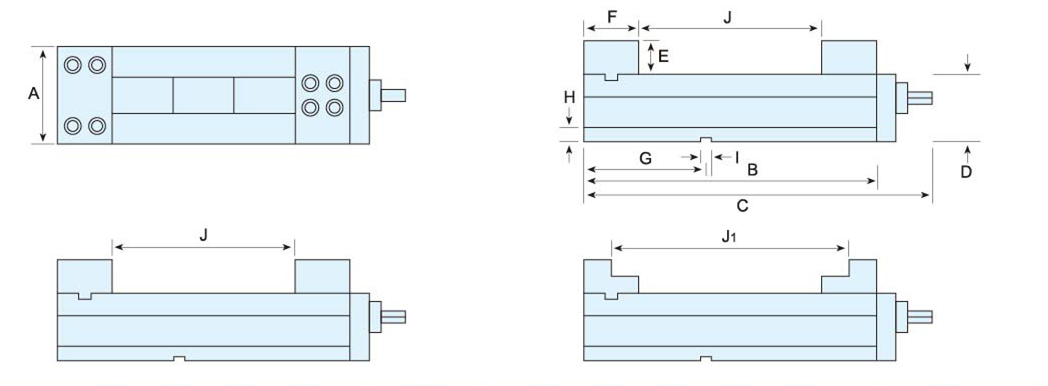

| MODEL | A | B | C | D | E | F | G | H | I | J | J1 | N.W. | G.W. | Clamping force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VSP-100 | 100 | 310 | 435 | 95 | 45 | 70 | 110 | 23 | 18 | 140 | 200 | 27kg | 30kg | 4000kgf |
| VSP-130 | 130 | 410 | 535 | 100 | 50 | 80 | 135 | 23 | 18 | 230 | 315 | 45kg | 48kg | 4000kgf |
| VSP-160 | 160 | 490 | 615 | 110 | 55 | 85 | 150 | 23 | 18 | 300 | 385 | 60kg | 62kg | 5000kgf |
| VSP-200 | 200 | 565 | 690 | 120 | 60 | 100 | 220 | 23 | 18 | 350 | 450 | 100kg | 105kg | 5000kgf |
