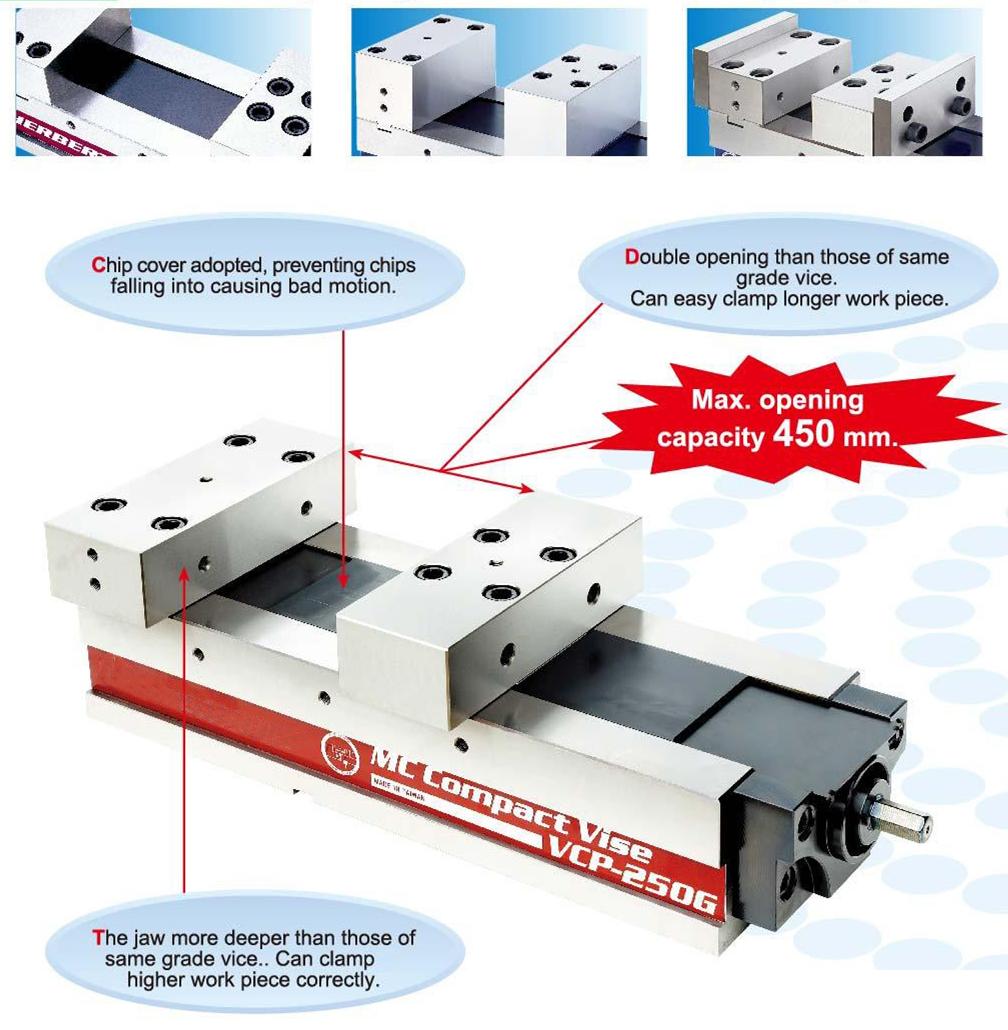

MECHANICAL TYPE SUPER PRECISION VICE
Click on product image magnification
Online inquiry

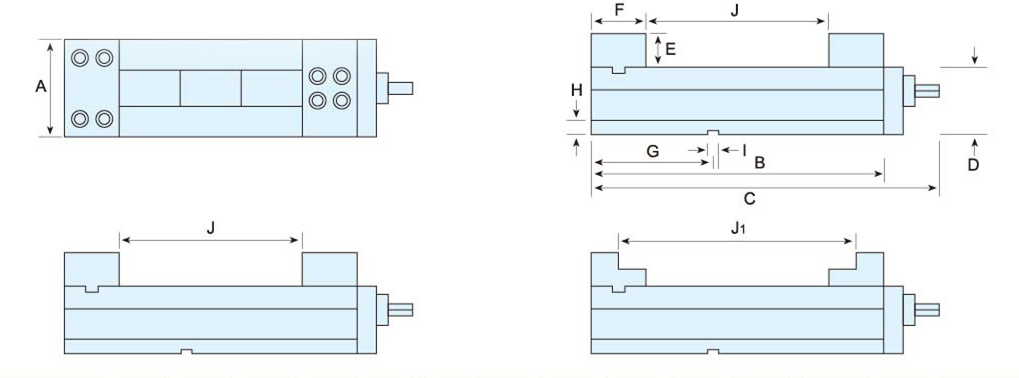

| MODEL | A | B | C | D | E | F | G | H | I | J | J1 | N .W. | G.W. | Clamping force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VCP-200G | 200 | 590 | 680 | 110 | 55 | 85 | 150 | 23 | 18 | 400 | 485 | 68kg | 73kg | - |
| VCP-250G | 250 | 665 | 755 | 120 | 60 | 100 | 220 | 23 | 18 | 450 | 550 | ll0kg | 126kg | - |
| VCP-160L | 160 | 590 | 680 | 110 | 55 | 85 | 150 | 23 | 18 | 400 | 485 | 66kg | 71kg | - |
| VCP-200L | 200 | 665 | 755 | 120 | 60 | 100 | 220 | 23 | 18 | 450 | 550 | ll0kg | 117kg | - |
