CONSTANT PRESSURE SUPER PRECISION VISE
Click on product image magnification
Online inquiry

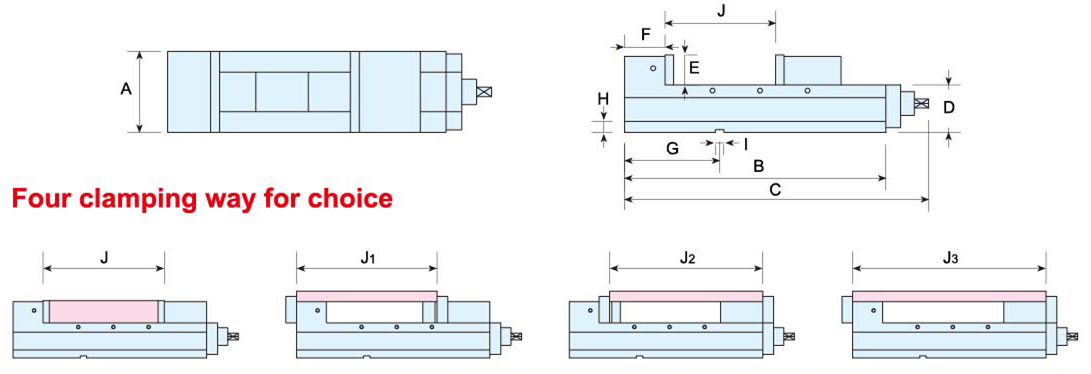

| MODEL | A | B | C | D | E | F | G | H | I | J | J1 | J2 | J3 | N .W | G.W | Clamping Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VIP-100 | 100 | 400 | 530 | 85 | 45 | 80 | 110 | 23 | 18 | 200 | 230 | 260 | 340 | 32kg | 35kg | 4000kgf |
| VIP-130 | 130 | 450 | 580 | 95 | 50 | 85 | 135 | 23 | 18 | 240 | 285 | 320 | 405 | 45kg | 48kg | 4500kgf |
| VIP-160 | 160 | 550 | 680 | 100 | 60 | 103 | 200 | 23 | 18 | 300 | 380 | 400 | 500 | 63kg | 66kg | 5000kgf |
| VIP-200 | 200 | 600 | 730 | 110 | 60 | 108 | 220 | 23 | 18 | 340 | 438 | 470 | 578 | 92kg | 104kg | 5500kgf |
