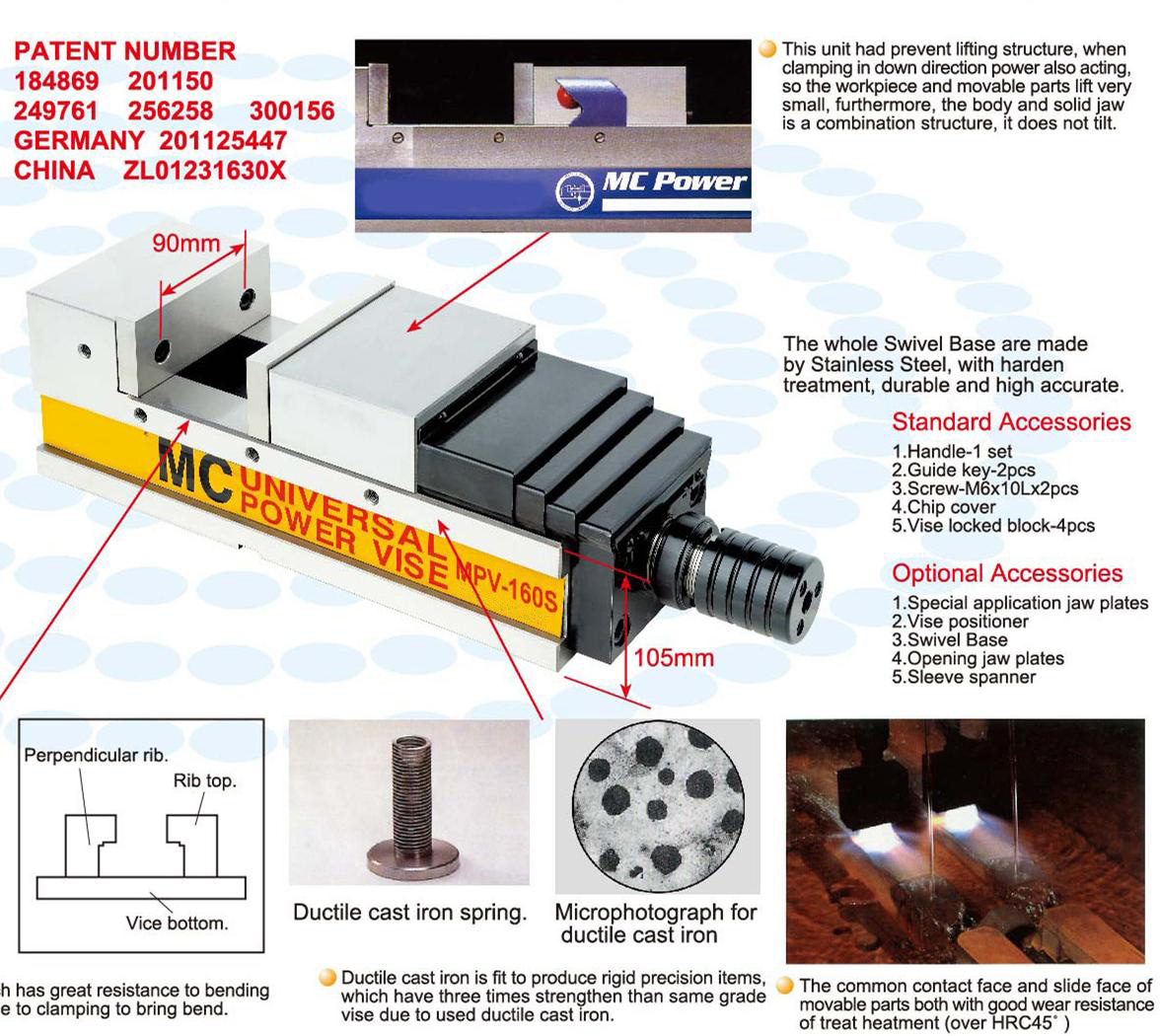

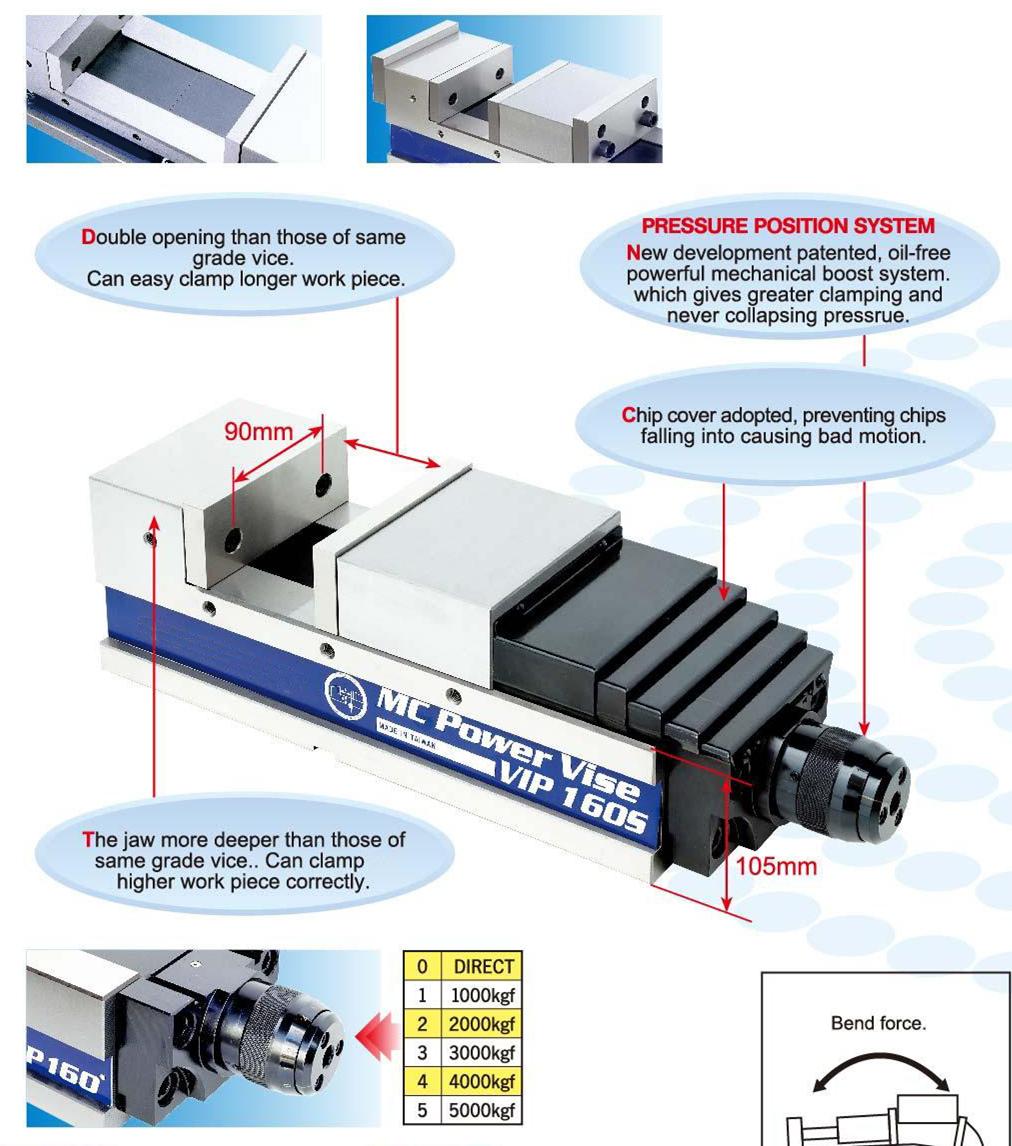

CONSTANT PRESSURE SUPER PRECISION VISE
Click on product image magnification
Online inquiry

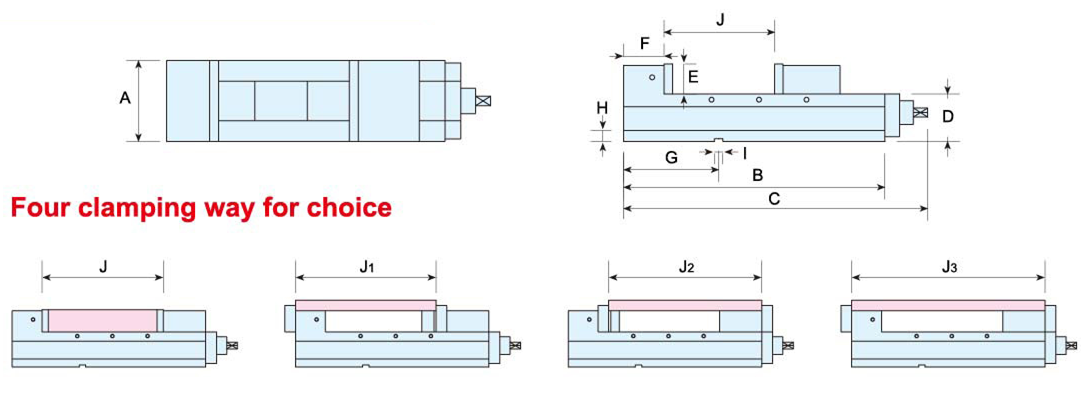

| MODEL | A | B | C | D | E | F | G | H | I | J | J1 | J2 | J3 | N.W | G.W | Clamping force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VIP-160S | 160 | 550 | 670 | 105 | 55 | 85 | 150 | 23 | 18 | 310 | 400 | 430 | 540 | 62kg | 63kg | 5500kgf |
| MPV-160S | 160 | 550 | 680 | 105 | 55 | 85 | 150 | 23 | 18 | 310 | 400 | 430 | 540 | 62kg | 63kg | 5000kgf |
| MB-160S | 160 | 550 | 640 | 105 | 55 | 85 | 150 | 23 | 18 | 310 | 400 | 430 | 540 | 62kg | 63kg | - |
