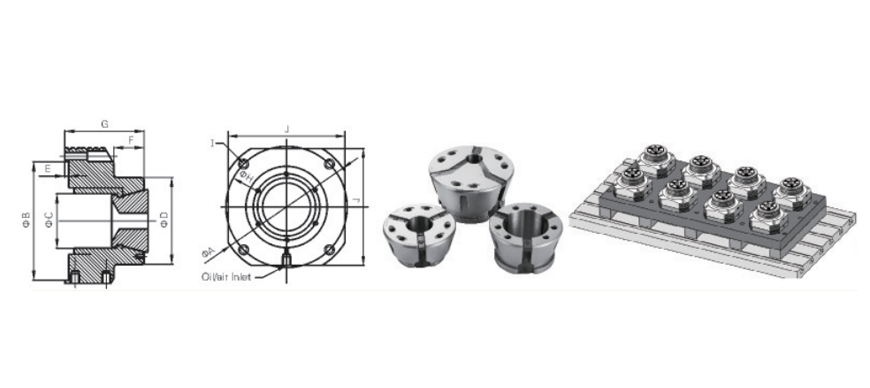

JHL RUBBER COLLET FIXED CHUCK
Click on product image magnification
Online inquiryJHL Series products:
Fixed and non-rotating.Glue-injected flexible collet, parallel clamping, with a larger clamping surface and stronger gripping force.
Long service life, powerful function of waterproof and dustproof. Easy control over the concentricity and parallelism at both ends.
Separate size processing over multiple sections to reduce equipment costs.
Replacing CNC multi-section simultaneous processing with single-action grinding machine.Requiring the provision of rear pneumatic/hydraulic cylinder rod drive.
Suitable for non-standard fixtures for CNC milling and drilling machines,can be used as row-type multi-station fixtures.
Suitable for machining of precision workpieces.
MODEL/SPEC
A
B
C
D
E
F
G
H
I
J
JHL-42
185
150
110
5
38.5
164
4-M8
158
JHL-52
185
150
110
5
38.5
100.5
164
4-M8
158
JHL-65
185
150
65
130
5
38.5
100.5
164
4-M8
158
45
100.5
55
MODEL/SPEC
Working Pressure
Collet
Collet stroke
Drive Mode
JHL-42
20
SK-42
±0.5
Air/Hydraulic
JHL-52
20
SK-52
±0.5
Air/Hydraulic
JHL-65
18
SK-65
±0.5
Air/Hydraulic
