4-jaw scroll chuck plain back,solid jaws (front and back mounted)
Click on product image magnification
Online inquiryGripping of square or octagonal workpieces could fit into central line automatically.
SIC have high stability in gripping thin tube work piece.
The specification is the same as SC type.
The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.
Unit : mm

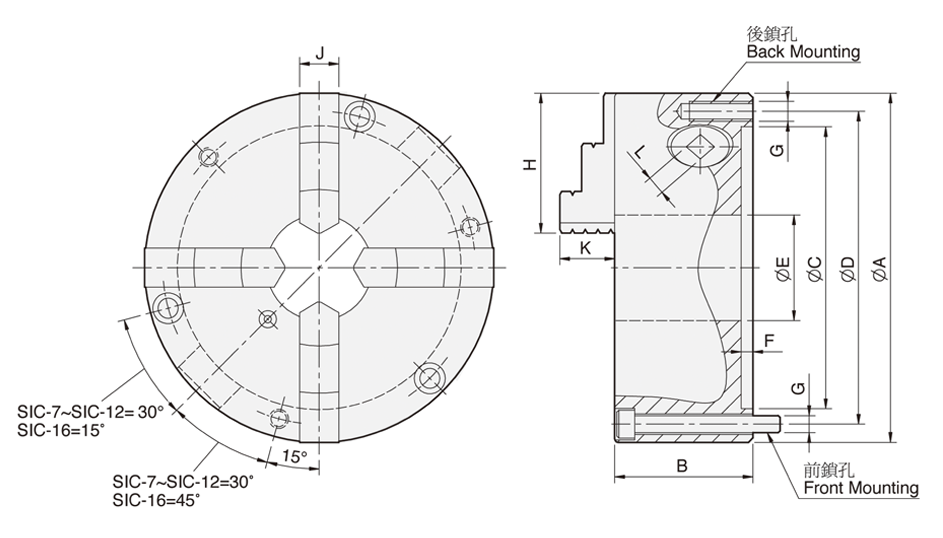

Model/Size
A
B
C
D
E
F
G-Rear/Front Mounted
H
J
SIC-7
192
76.5
155
172
58
5.5
3-M10
/ 3-M10x8
77
21.5
SIC-9
232
84
190
210
70
6
3-M12
/ 3-M12x90
87
24
SIC-12
310
96
260
285
105
7
3-M12
/ 3-M12x110
110
30
SIC-16
405
122
345
375
160
8.7
-
/ 6-M14x130
146
42
Model/Size
K
L
Allowed handle Torque
(kgf‧m)
Gripping Force
(kgf)
Max. speed
(r.p.m.)
Weight
(kg)
Inertia moment
(kg‧m2)
Gripping Range
OD/ID.
SIC-7
29.4
11
11
2500
2000
14.8
0.06
Ø4-Ø180
/ Ø56-Ø170
SIC-9
35.6
12
15
3000
2000
23.2
0.16
Ø5-Ø220
/ Ø62-Ø210
SIC-12
45.6
14
21
4200
1800
47
0.58
Ø10-Ø300
/ Ø86-Ø290
SIC-16
56.3
15
25
4500
1500
107
1.75
Ø30-Ø380
/ Ø110-Ø360
