Non through-hole rotary hydraulic cylinder
Click on product image magnification
Online inquiryDense quality, low inertia and light weight: alloy aluminum body can reduce the spindle burden.
High rotaty speed and keep balanceable as the light weight.
Long service life: high quality oil seal and high accuracy compondent can make a long service life.
Unit : mm
| Model/Size |
Piston Dia. (mm) |
Eff. piston area (cm2) Extend/ Retract |
Max. tube power KN(kgf) Extend / Retract |
Piston stroke (mm) |
Max. operating pressure Mpa(kgf/cm2) |
MAX. RPM (r.p.m.) |
Inertis (kg‧m2 ) |
Weight (kg) |
Total Leakage L/min |
|---|---|---|---|---|---|---|---|---|---|
| MH80 | 80 | 47.7 / 42.8 |
15.5(1580) 13.9(1417) |
15 | 3.5(35.7) | 6000 | 0.005 | 5.1 | 0.4 |
| MH100 | 100 | 75.4 / 70.5 |
24.5(2498) 22.9(2335) |
20 | 3.5(35.7) | 5500 | 0.0125 | 6.6 | 0.4 |
| MH125 | 125 | 121.1 / 114 |
39.3(4007) 37(3773) |
25 | 3.5(35.7) | 5500 | 0.02 | 8.4 | 0.4 |
| MH150 | 150 | 176 / 160 |
66(6730) 60(6118) |
30 | 4.0(40.8) | 4000 | 0.047 | 10.4 | 0.8 |

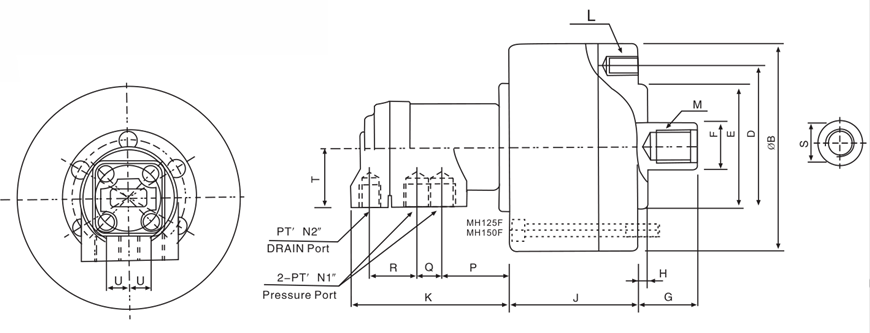

| Model/size | B | D | E(h7) | F | Gmax. | Gmin. | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|
| MH80 | 112 | 90 | 65 | 25 | 45 | 30 | 6 | 73.5 | 103 | 6-M8x16 |
| MH100 | 135 | 100 | 80 | 25 | 45 | 25 | 6 | 88.5 | 103 | 6-M10x19 |
| MH125 | 160 | 130 | 110 | 30 | 51 | 26 | 6 | 95.5 | 103 | 6-M12x20 |
| MH150 | 190 | 130 | 110 | 45 | 50 | 20 | 6 | 107 | 103 | 12-M12x20 |
| Model/size | M | N1 | N2 | P | Q | R | T | U | S |
|---|---|---|---|---|---|---|---|---|---|
| MH80 | M16x2.0x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 22 |
| MH100 | M16x2.0x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 22 |
| MH125 | M20x2.5x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 27 |
| MH150 | M30x3.5x40 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 38 |
